DC5V 9mm LED Pixel Christmas Decor Lighting Waterproof Signage Led Channel Signage Letters Single Color, RGB ,Fullcolor

DC5V 9mm LED pixel Christmas lighting waterproof signage led channel signage letters single color, RGB ,fullcolor

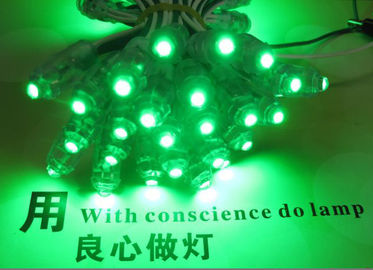

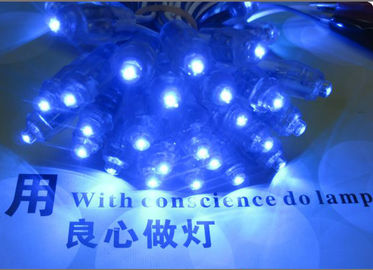

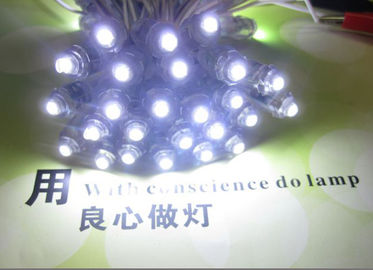

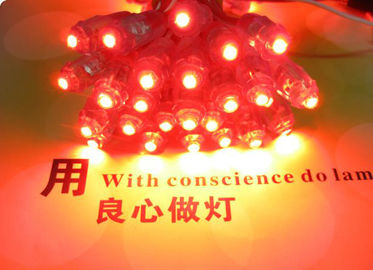

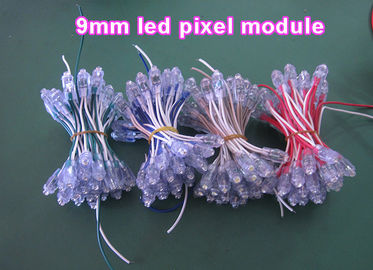

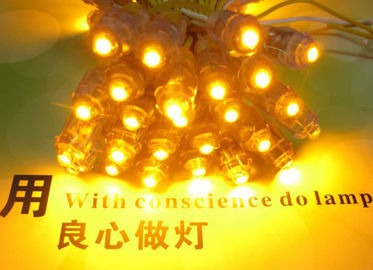

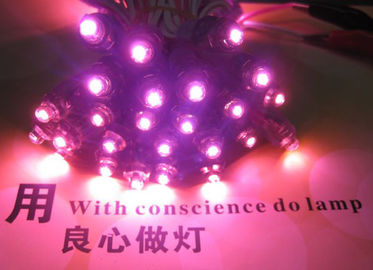

Pictures:

Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

Package:

Application pictures:

Notice:

1.Pls confirm the dirver is DC5V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.

4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.

Common faults and troubleshooting:

1.the whole sting can’t be light up.

 Resolve way:Inspect whether the string and driver main wire polar connected right or not.

2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones

3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
