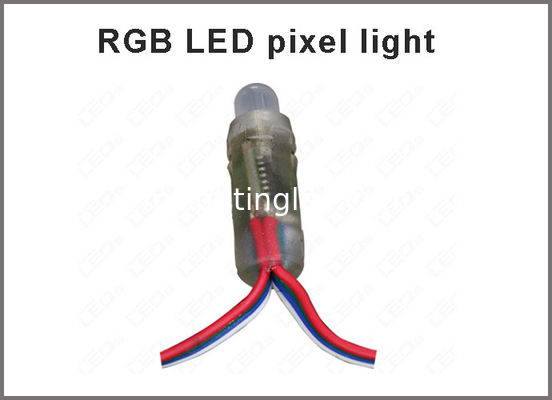

12mm 5V Sevencolor Led Pixel Light RGB Controller Handle The Effects Colorchanging Pixel Light

12mm 5V Sevencolor led pixel light RGB controller handle the effects colorchanging pixel light

Specification

Pictures

Feature:

• IP67 full waterproof design, works reliably for outdoor signage in rainy and humid environments

• Low voltage design, safe installation for advertising channel letters and logo backlighting

• High brightness LED chip, stable light output, low power consumption and long service life

• Small 9mm compact size, easy to hide inside letter signs without affecting appearance

• Can be cut at marked cutting points, flexible to match different sizes of advertising letters

• Pre-soldered wire connection, simple and fast on-site installation, saves labor cost

Installation Notes

1. Check all LED pixels for damage before installation. Do not use any lamps with broken shells or exposed wires.

2. This LED pixel works at low voltage. Do not connect to high-voltage mains directly, otherwise the lights will burn out immediately.

3. Cut the string only at the marked cutting points. Cutting at other positions will damage the circuit and make the pixels non-functional.

4. Keep the wiring joints sealed well after connection. Even though the lamp body is IP68 waterproof, the splice joints are not waterproof without sealing.

5. Avoid pulling or stretching the wires violently during installation, which may cause internal wire breakage and light failure.

6. Do not bend the lamp bead body sharply. Sharp bending will damage the internal LED chip.

Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

RGB led controller and Amplifier are needed for RGB LED pixel light.

Package

Application

1.Channel letters

2.Advertising signage lighting

3.Lighting source for light box, lighting box,signaboards,logos,advertising boxes.

4.Advertisement bill board inside led lighting

After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


• 1year warranty, life-long maintenance. Answer will be replied in 24hours.

• Technican will solve the problem on site.

• Give product upgrade solution to improve plane.

• We will give phone call interviews every month during warranty period

Q: What should I pay attention to when installing these LED pixel lights?

A: ① Only cut at the marked cutting points.

② Never connect the pixels directly to high voltage.

③ The lamp body is IP67 waterproof, but wire joints need extra waterproof sealing.

④ Test all lights before sealing the advertising letter box.

⑤ Avoid strong pulling of wires and sharp bending of lamp beads.

⑥ Do not overload the power supply and keep away from high-temperature areas.
