Product Details:
Payment & Shipping Terms:
|
| Color: | Single Color | Voltage: | DC5V/DC12V |
|---|---|---|---|
| Power: | 0.12W | Waterproof: | IP68 |
| Products Diameter: | 9mm | Cable Length: | 6cm |
| Usage: | Lighting Letter For Advertising Board | Warranty: | 3 Years |
| Paypal: | T/T,Paypal,Western Union | Application: | Advertising Board |
| Product: | Led Pixel Light |
9mm 12mm Led Pixel Light Advertising Board Pixel Light Source CE ROHS
Specifications:
| Product Name | 9mm LED pixel light |
| Product Size | 9m diameter |
| Hole size | 9mm diameter. |
| Voltage | DC 5V/12V |
| Power | 0.12W |
| Working Currency | 20mA |
| Bean Angle | 160° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
| Application | LED Pixel light is widely used for building sign, advertising letters,Name board, Wire bar,wall,building and stage decoration. |

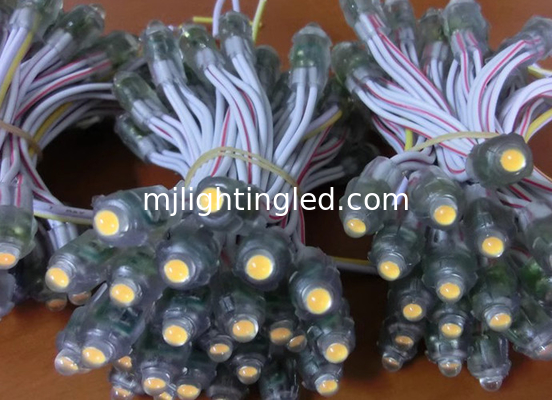

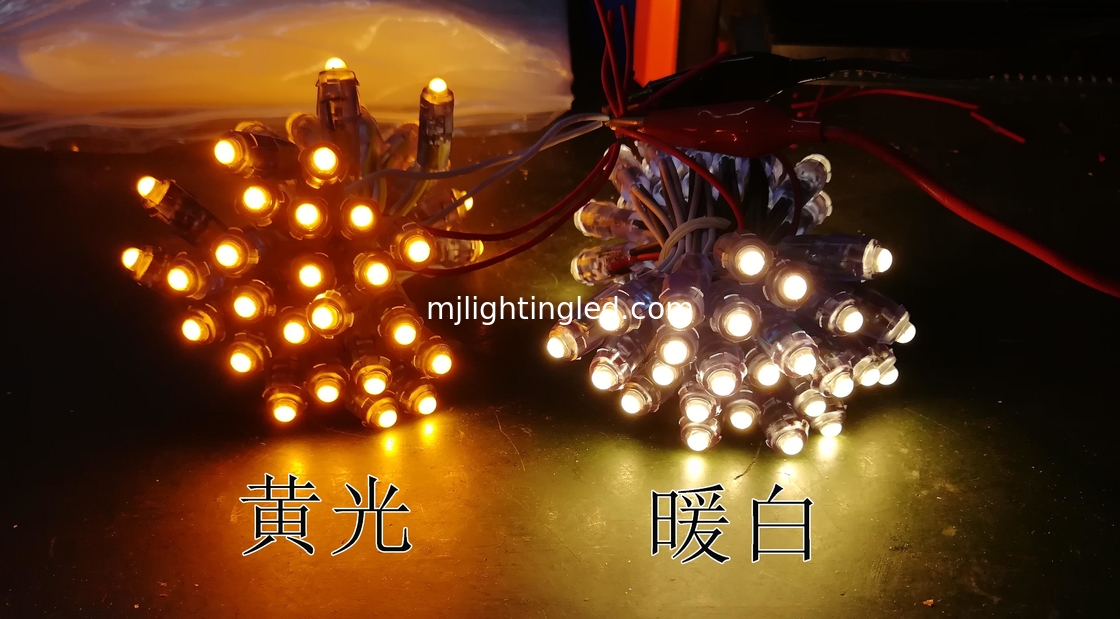

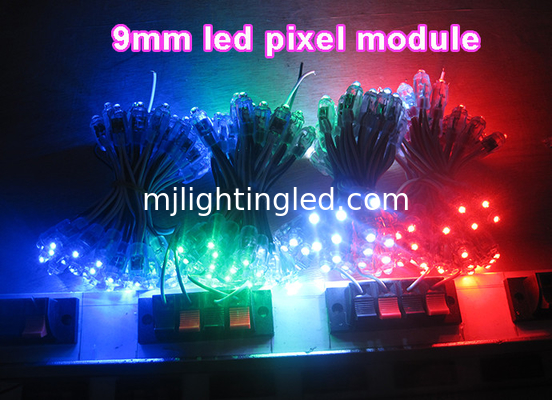

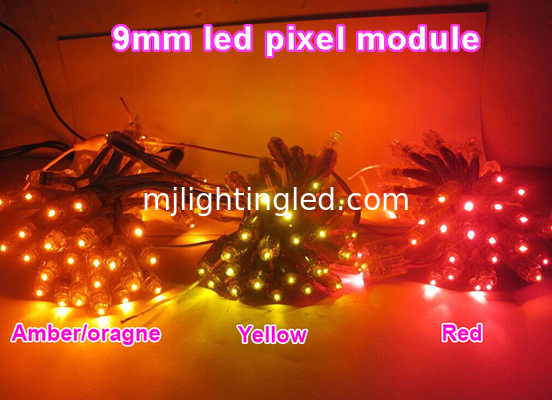

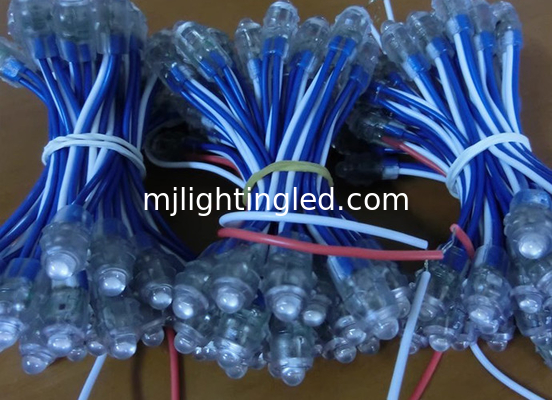

Pictures:
pixel lighting, 5V and 12V all are available. 12V will be more brighter. If you need , Pls tell us which voltage you need. and which color you want.
5V and 12V both available.
Package:
50pcs/string, 1000pcs/bag, 5000pcs/curton.
Application pictures:
LED pixel light are also customized. Pls tell me what you need, and we can design that for you. But make sure , the deliver time maybe longer.
Storage
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.
Building exhibition hall together with customers and agents.
Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.
Support customize to help dealers and agents satisfy their customers well.
Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.
Support professional technical service on pre-sale,in-sale and after-sale.
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
Notice:
1.Pls confirm the dirver is DC5V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
