Product Details:
Payment & Shipping Terms:
|
| Color: | RED | LED: | 5730SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Product Name | 3led module |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 0.8 W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 20pcs/roll |
| Emitting Color | RED |
| Application | LED Channel Letter ,advertising letters, bar,wall,building and stage decoration. |

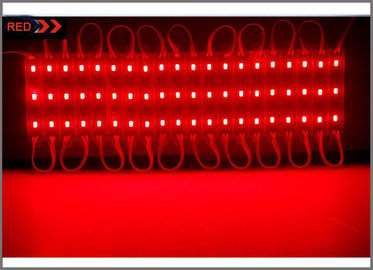

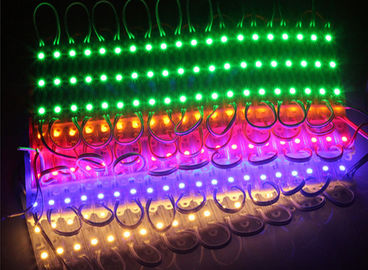

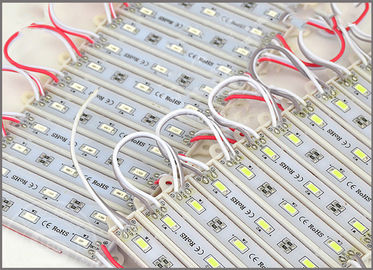

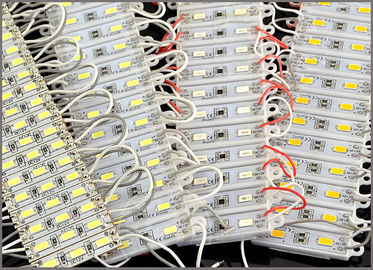

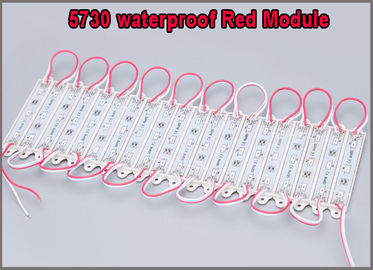

Pictures:
Feature:
1. High brightness, uniform light output, low light decay.
2. Low power consumption, energy saving.
3. IP65/IP67 waterproof design, suitable for indoor & outdoor signage.
4. SMD chips, stable performance and long service life.

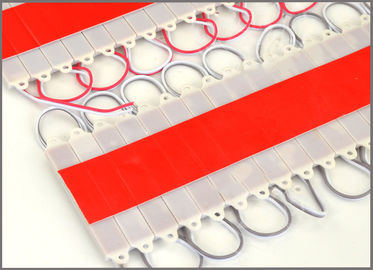

6. Easy installation with 3M adhesive tape on back.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .
Application pictures:
LED channel letters,Lightbox backlight, Name board, building and stage decoration,Mcdonald's Sign.
Notice:
1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
Q1: What voltage is the SMD LED module?
A: Standard DC12V or DC24V, please choose the correct power supply.
Q2: Can it be used outdoors?
A: Yes. IP65/IP67 waterproof. You need to seal wire connectors with waterproof glue for outdoor installation.
Q3: How to install the modules?
A: There is 3M tape on the back. Clean surface, peel tape and stick on flat panel, then wire in parallel.
Q4: Can I cut or separate the modules freely?
A: Each module is independent. You can cut between modules, don’t cut the single module itself.
Q5: What’s the lifetime of these LED modules?
A: Up to 50,000 hours under normal working condition.
