| Products: | Illuminazione Moduli Led | Power: | 0.72W |
|---|---|---|---|
| Voltage: | DC12V | LED: | 5050 Led |
| Color: | White | IP Rate: | IP67 |
| Application: | Led Sign | Size: | 75*12*05 Mm |
1. IP67 waterproof design, suitable for indoor & outdoor signage.
2. SMD chips, stable performance and long service life.
3. Easy installation with 3M adhesive tape on back.
4. DC low voltage power supply, safe for operation.
5. Flexible parallel connection, convenient for custom sign size.
6. Good heat dissipation, reduce failure rate.

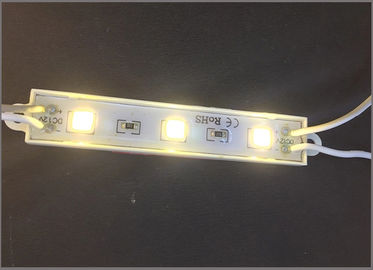

| Model No. | MJ-5050-W-outdoor |
| Light sources | 5050 SMD 3led |
| Chip material | AlGaInP |
| Input voltage | DC 12V |
| Lumen | 42-50LM |
| Power | 0.72w |
| IP rank | IP67 |
| Certification | CE,RoHS |
| Dimension | 75*12mm |
| Lifespan | 50000 hours |
| Color | Warm white/cool white |
| Angle Beam | 120dg |
| Operating temperature | —40-60℃ |
| Color temperature | 2700-20000K |
| Optical attenuation | 1000H≥5% |
| Color rendering index | 70Ra |
| Warranty | 2 year |
Feature:
1.High quality import LED chip, Top-encapsulation, good color purity, high brightness and low lighting failure.
2.High light effective; No light decay after 1000Hrs working;
3.Better heat dissipation,low-power,long-lifespan,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;
5.3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
Installation Tip:
—Silicon glue or 3M double tape directly fixing modules.Pls Cleaning or polishing module surface before the installation.
—Can use screw mounting the modules on the board.
—Single led module can be cut off.
Pictures:
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
Package:

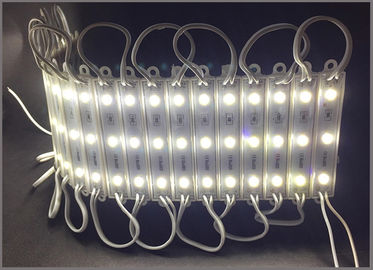

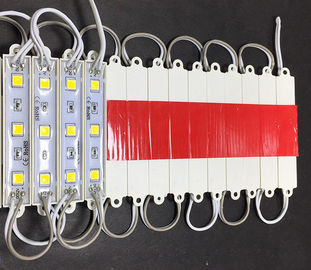

20pcs/string, 5000pcs/curton. Packing picture as below:
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
Application

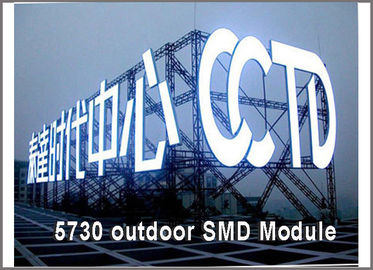

LED channel letters
Name board
Wine bar wall decoration
building and stage decoration.
Shop advertising
Q4: Can I cut or separate the modules freely?
A: Each module is independent. You can cut between modules, don’t cut the single module itself.
Q5: What’s the lifetime of these LED modules?
A: Up to 50,000 hours under normal working condition.
Q6: Do you accept customized order?
A: Yes, we support custom color, power, PCB size and logo printing.
Q7: What certificates do you have?
A: CE and RoHS certificates available.
