ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen

China ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen supplier
ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen supplier ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen supplier ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen supplier ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen supplier

Large Image :  ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen

Product Details:

Place of Origin: China
Brand Name: ZhongHang
Certification: CE ROHS
Model Number: ZH-W7

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Anti-static Package
Delivery Time: 2-5days after getting payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 5000pcs/day
Detailed Product Description
Product: ZH-W7 WIFI Led Controller Card Voltage: DC5V
Communication: Wifi & USB Pixel: 256*2048,512*1024
Port: 2x50pin Application: Led Control System For Led Screen
Usage: Text,clock,time Showing

                                      Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen


Feature:

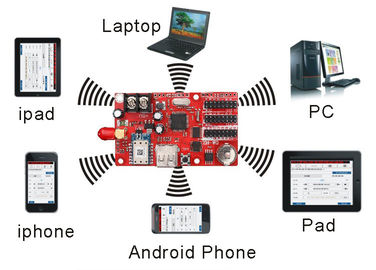

Short distance wireless wifi control system: no wire connection, internal wireless routing function. Support
ipad,iphone,android phone, pad,PC and laptop. software on PC switch Wifi network intelligently. So it can replace USB fully.


Specification:

Mode ZH-W7 wifi led controll card
Communication Wifi+USB
Port 2x50PIN
Pixels Range 256*2048,512*1024
Voltage DC5V(4.6-6V)
Power (Max) 3W
Working Temperature -30~70 degree
Receiving sensitivity <( 802.11b:-89dBm, 802.11g:-81dBm, 802.11n:-71dBm)
Transmission Distance(Max) <200m ( suggest  <100m)
Antenna 2.4GHZ Special antenna



Advantage:
1.No wire connection . 2. Easy to use. 3. No more cost. 4. Point to point communication. 5. Searching for wifi
automatically and connect it realiablly.

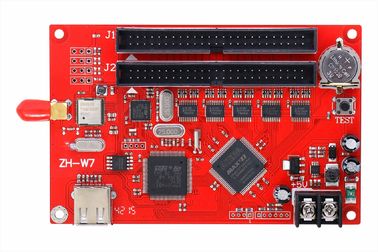

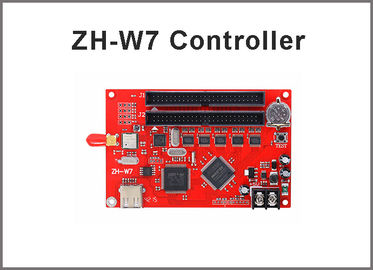

Pictures:
ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen
ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen

ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen

Other Wifi controller card:


Product Mode Pixels Range Port
ZH-Wn 32*320,16*640 2XHUB12
ZH-Wm 32*512,16*1024 2XHUB12, 1XHUB08
ZH-W0 32*1024,16*2048 2XHUB12, 1XHUB08
ZH-W1 32*1536,48*1024 3XHUB12, 1XHUB08
ZH-W2 48*1360,64*1024 4XHUB12, 2XHUB08
ZH-W3 96*680,128*512 8XHUB12, 4XHUB08
ZH-W4 96*1064,128*800 8XHUB12, 4XHUB08
ZH-W5 128*1280,256*640 1XPIN50
ZH-W6 128*4096,256*2048 1XPIN50
ZH-W7 256*2048,512*1024 2XPIN50

Software:

led Control System is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.

5V ZH-Um USB port controller card display screen led module control system Multi-area Display Asynchronous5V ZH-Um USB port controller card display screen led module control system Multi-area Display Asynchronous5V ZH-Um USB port controller card display screen led module control system Multi-area Display Asynchronous


Display worked with display card:

1. Short distance below 100m, Laptop can communication directly. PC can communicate by wireless network adapter and wifi controller.
2.Laptop can communication directly because the card comes with
routing function.
3.It is widely used everywhere there is good wireless wire signal . Such as: airport, station and so on.
4. If it is used for outdoor display screen, Pls make sure to protect it from water and rainly.
5. Pls make sure the antenna installed at the right place. ZH-W0 controller antenna should be
installed outside of the display screen.

ZH-W7 WIFI led controller card 2048*256 pixels asynchronous led control system for single ,dual,full color led screen
