Product Details:
Payment & Shipping Terms:
|
| Product: | ZH-E3 Control Card | Voltage: | DC5V |
|---|---|---|---|
| Communication: | Network & USB | Pixels: | 32*2048;64*1024;96*680;128*512 |
| Port: | 8xhub12;4xhub08 | Control Color: | Single And Dual Color |
| Application: | LED Display Controller Card | Warranty: | 2 Years |
| Display: | Graphics, Text | Usage: | Semioutdoor, Outdoor |
Main products Hot seller
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ZH-E3 Network+USB Port 4*HUB08 & 8*HUB12 1024*64 Pixels Single & Dual color LED Display Controller Card
Specification:
| Hardware | Mode | ZH-E3 | ||
| Processor | ARM7 | |||
| LedOS System | internal LedOS V3.56 operating system | |||
| Capacity | 4M bit | |||
| Communication | ||||
| Network | Support | |||
| Distance | ||||
| Distance:150m | ||||
| USB | Support | |||
| Display adapter | 8xhub12;4xhub08 | |||
| Testing display module | Rapidly detect the unit plate if it has problem or not,such as blind points,dark light,full red,etc | |||
| Working voltage | 5V (3.2~5.5V) | |||
| Power | Below 0.5W | |||
| Environment Temperature | -30~70 Degree | |||
| Software | Operating System | Windows2000,NT,XP,Vista and Win7 | ||
| Software | LedControl V3 | |||
| Display funtion | multi-program play | At most add 32 programs,you can set multi-program fixed time play,timer play,time segment play,single program play | ||
| multi-partition | Each program adds 4 free partition at most at the same time (it’s not traditional pseudo partition), random size,position,alone operation | |||
| Program types | Image-text,subtitles,digital time,analog clock,animation | |||
| Time switch | Support software forced switch and time switch | |||
| Time display | Support digital time and analog clock | |||
| Motion way | 60 kinds of display ways and 42 kinds of quitting ways arbitrary collocation,over 2000 kinds of random assortments perfect collocation | |||
| Running side | Over 10 kinds of running modes,support single partition running mode | |||
| Brightness adjustment | Support 0-15 levels manual brightness adjustment | |||
| Specification | application Range | Support 1/4, 1/8, 1/16 scan,single and double color,full color unit plate | ||
| Max Pixels | 65536 | |||
| Support points | 128X512 | |||
| Support points | 32X2048 | |||
| OE | Set the"+" "-"through the software | |||
| DA | Set the"+" "-"through the software | |||
Pictures:

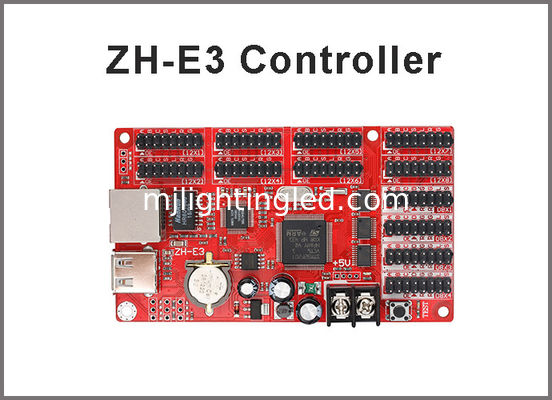

Pls check the pictures of ZH-E3 led display control card.
Control System
led Control System is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.
Display worked with display card:
