Product Details:
Payment & Shipping Terms:
|
| Color: | RED | LED: | 2835SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Application: | Illuminated Signs |
Main products Hot seller
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20PCS 2835 SMD LED Modules lighting Illuminated Sign DC12V Waterproof white smd led modules Light Advertising
Specifications:
| Product Name | 2835 SMD LED Module light |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 0.8 W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 30pcs/roll |
| Emitting Color | RED |
| Application | LED module is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |

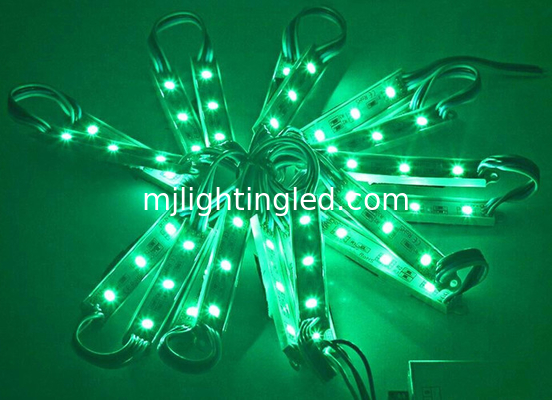

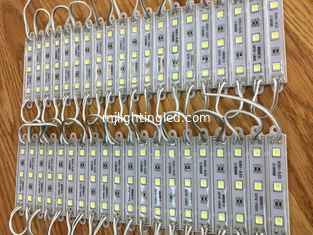

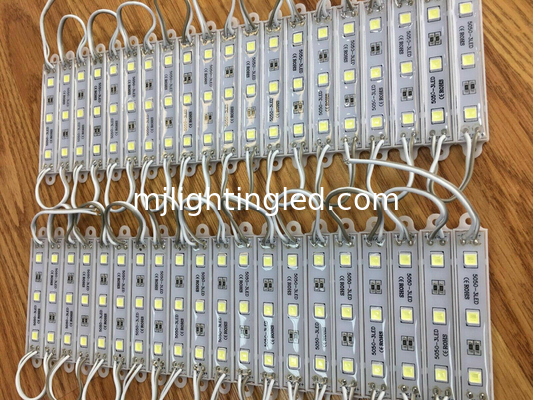

Pictures:
Feature:
1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.
2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.
6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .
Application pictures:
SMD LED modules are widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
Notice:
1.Before connect the modules with driver, pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2, more quantity of the modules, more thicker the wire should be.
3.Pls confirm the positive and negative of the string correctly, usually the negative is white.
