SMD5050 LED Module DC12V 6 LEDs Modules Waterproof Outdoor light Backlight for billboard


Specifications

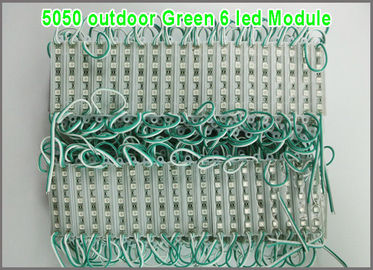

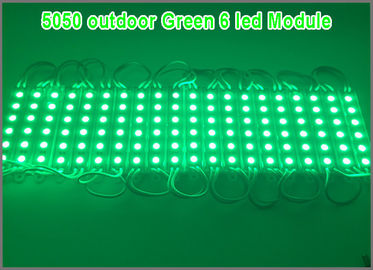

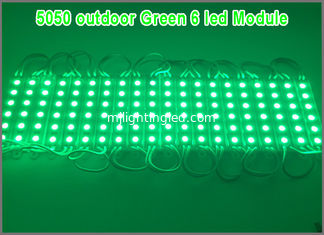

Pictures:

Why choose up ?


High brightness outdoor LED module, waterproof & dustproof

Anti-corrosion & anti-salt spray coating, 10-year service life

Perfect splicing, no grid mosaic effect

Factory direct supply, customizable size & parameters



Driver select and installation

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

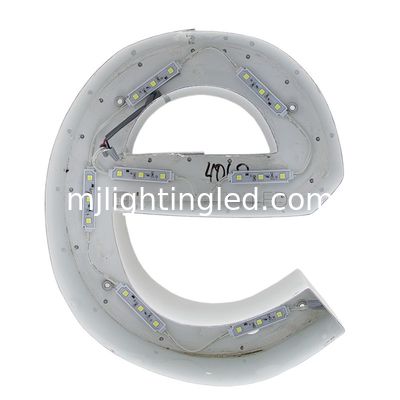

Application pictures

LED module is widely used for advertising channel letters, logo signs, storefront backlit signage
