3led 5730 LED Module Light 12VDC Led Backlight Channel Letter Outdoor Advertising Signage Led Signs

3led 5730 LED module light 12VDC led backlight channel letter outdoor advertising signage led signs

Specifications:

Product: 5730 LED Module

Size:75*12*5mm

Voltage:DC12V

Power:0.8W/pc

Working Currency:20mA

Bean Angle:160dg

Color:White

Application:Advertising Signage Led Signs

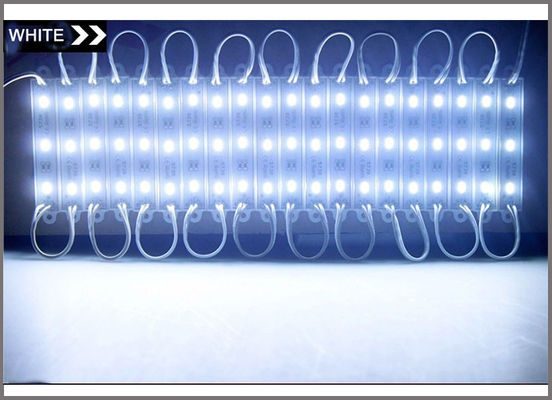

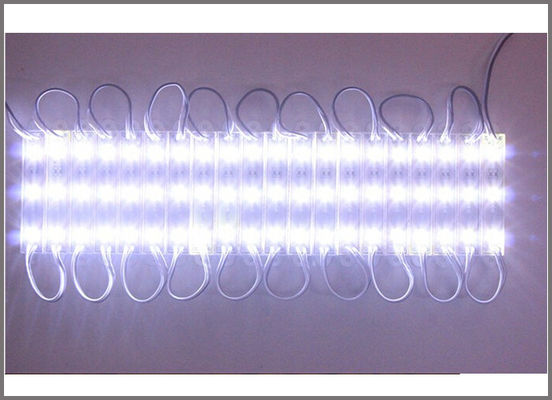

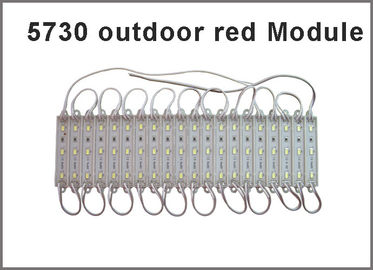

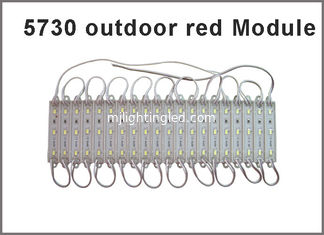

Pictures:




Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

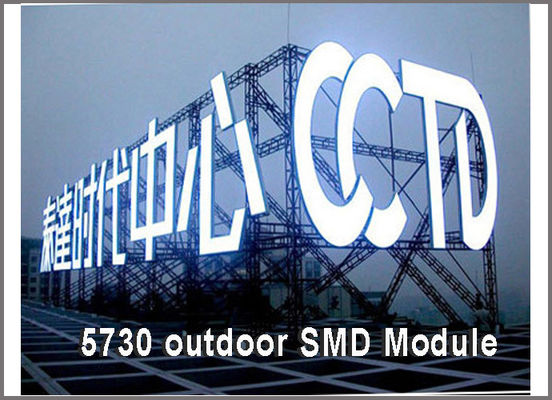

Application pictures:
1.LED lighting box,led luminours letters,led sign.

2.LED outdoor advertising sign,bar,KTV.

3.LED Lighting engineering,led landscape engineering.

4.Hotel building external wall landscape.

5.Advertising signs,lighting signs,light box,3D lighting letters,blister word, other advertising lighting,ect.

6.Hotel ,KTV,Shopping malls, entertainment city indoor (dark trough) and exterior wall lighting,landscape layout,stage decoration,city lightings.

7.AD Lighting boxes in subway, airport,railway station ect.



Notice:
1.Pls confirm the dirver is DC12V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.
