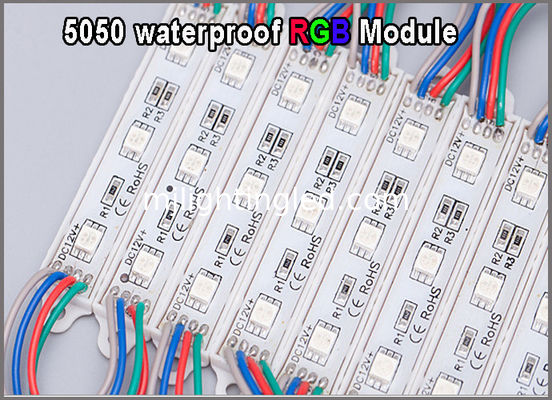

3 LED module of RGB LED 5050, 0.72W 12V, IP65 for backlight Texsign

3 LED module of RGB LED 5050, 0.72W 12V, IP65 for backlight Texsign

Specifications:

Product Name:5050 RGB LED module light    Size:75*12*5mm

Working Voltage: DC12V                                     Power/pcs: 0.8W/pcs

Working Currency: 20mA                               Bean Angle: 180dg

IP Rate: IP67                                                           Warranty: 3 years

Package: 20pcs/rolls, 2000pcs/curton            Color: RGB

Pictures:

Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

Application pictures:
RGB LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
Application pictures:
Advertising lighting letters , Name board, Wire bar, wall,building and stage decoration.
Backlight of giant signage and channel letter
Marine signal and task lighting
Decoration lights for furniture: shelf, wardrobe, etc.
Architectural outdoor lights
Decoration lights for bar, pub, club, disco
