Product Details:
Payment & Shipping Terms:
|
| Product Size: | 74*20mm | Color: | White Color |
|---|---|---|---|
| Products: | SMD 3030 3W High Power Led Modules | Working Voltage: | DC12V |
| Product Wattage: | 3W | View Angle: | 160dg |
| Waterproof Rate: | IP68 | LED: | SMD 3030 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DC12V 3W LED Light 74*20mm High Power Pixel Module White Color For Backlight
Specifications:
| Model No. | 3W LED light |
| Light sources | 3030 SMD 3 pieces |
| Chip material | AlGaInP |
| Input voltage | DC 12V |
| Lumen | 280-400LM |
| Power consumption | 3W |
| IP rank | IP67 |
| Certification | CE,RoHS |
| Dimension | 74*20mm |
| Lifespan | over 50000 hours |
| Color | Warm white/cool white/red/green/bule/yellow |
| View Angle | 120-180° |
| Operating temperature | —40-60℃ |
| Color temperature | 2700-20000K |
| Optical attenuation | 1000H≥1% |
| Color rendering index | 80Ra |
| Warranty | 3 years |

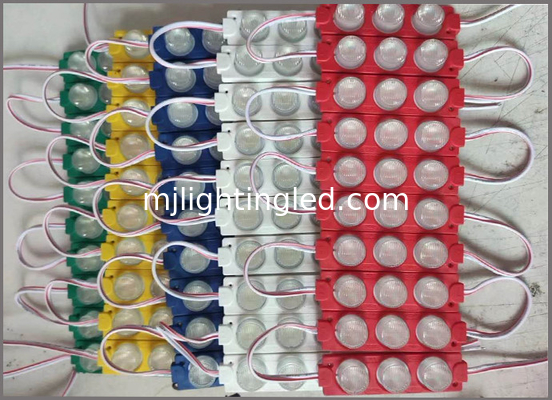

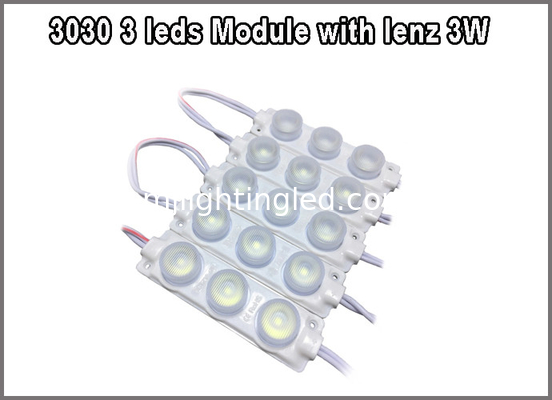

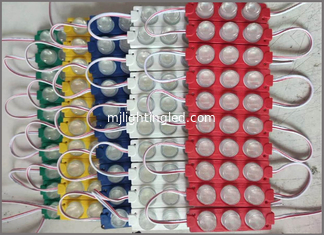

Pictures:
1.High quality import chip,Top-encapsulation ,high brightness,small lighting failure.
2.High light effective; No light decay after working 1000Hrs;
3.Better heat dissipation,low-power,long-life,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;

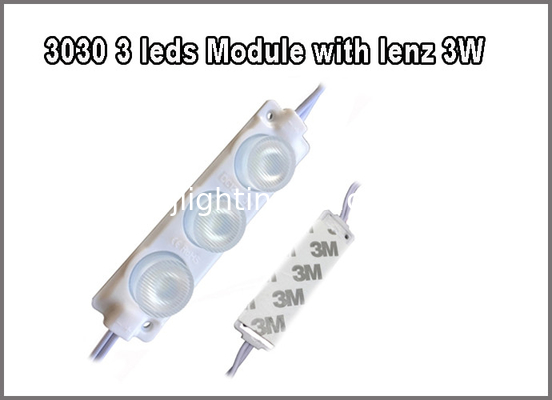

Pictures:
Installation:
Tips:

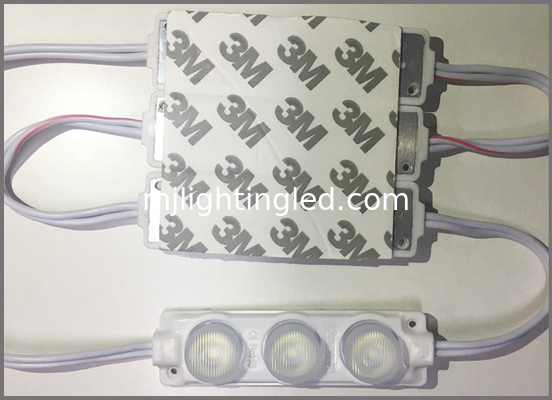

—Silicon glue or 3M double tape directly fixing modules, but before installation.
Cleaning or polishing module surface.
—Can use screw mounting the modules on the board.
—Single led module can be cut.
Application.
LED module is used for led signs lighting letters, lighting signboard, billboard,led channel letters, decoration, rgb pxiels display, decoration,building decorating...ect
