Product Details:
Payment & Shipping Terms:
|
| Size: | 74*20mm | Color: | Red |
|---|---|---|---|
| Products: | 3W LED Module | Voltage: | DC12V |
| Wattage: | 3W | View Angle: | 160dg |
| Waterproof: | IP68 | LED: | Led 5730 |
| Application: | Advertisement Design Led Signage |

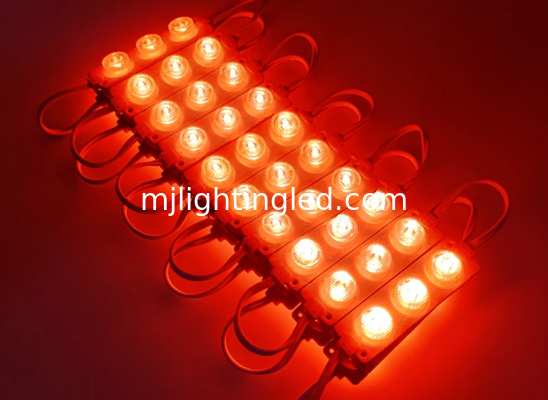

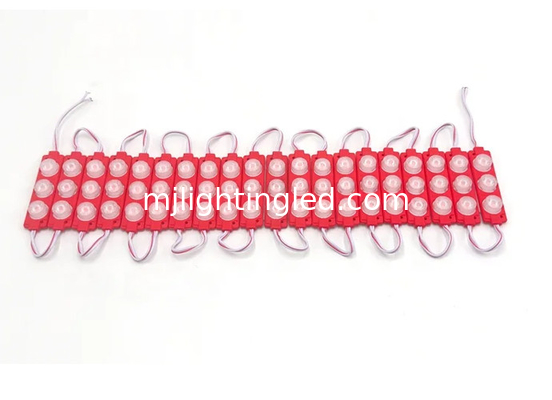

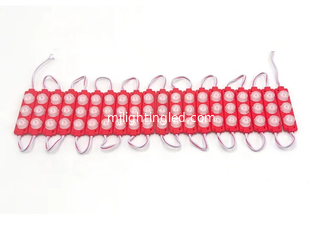

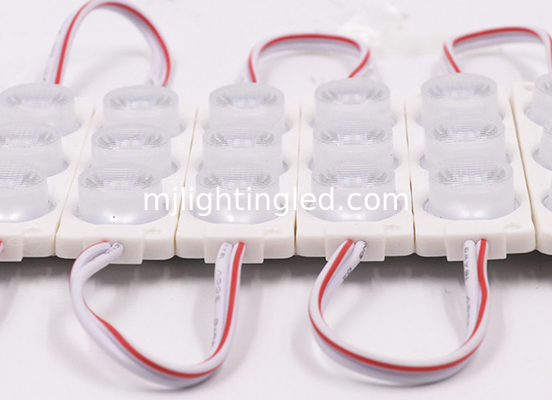

High Bright 3W 3030 3LED Module With Injection Lens Red Moduli For
Advertisement Design Led Signage
Specifications:
| Product Name | 3W LED Module |
| Product Size | 74*20mm |
| Colors |
white |
| Voltage | DC 12V |
| Power | 3W |
| Working Currency | 20mA |
| Bean Angle | 160° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -25℃～+45℃ |
| Warranty | Three Years |
| Package | 20pcs/string, 100pcs/pcakge, 1000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Pink |
| Application | This 3W LED Module is widely used for marking,double side light box, landscape layout and stage adornment, spray, blister word ,Advertisement Design Led signage,all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |
Pictures:
1.High quality import chip,Top-encapsulation ,high brightness,small lighting failure.
2.High light effective; No light decay after working 1000Hrs;
3.Better heat dissipation,low-power,long-life,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;
Pictures:
The product uses high quality LED light source,good luminous effect, Shell material made of imported PC material, fireproof, anti-UV, no easy become yellowing and other excellent performance.Wide range of application scenarios,Science and technology exhibition, lighting art,it can control by music and art with 3D effects,Stage stereo lighting,SD card controller playback and other effects.
Installation:
How is the module installed? Check below
Tips:
—Silicon glue or 3M double tape directly fixing modules, but before installation.
Cleaning or polishing module surface.
—Can use screw mounting the modules on the board.
—Single led module can be cut.
Application.
Where use this modules?
LED modules is widely used for lighting letters, lighting signboard, billboard,led channel letters, decoration, rgb pxiels display, decoration,building decorating...ect
