Product Details:
Payment & Shipping Terms:
|
| Product: | ZH-U4 Display Control Card | Voltage: | DC5V |
|---|---|---|---|
| Communication: | RS232 & USB | Pixels: | 32*3200,128*800 |
| Port: | 8xhub12;4xhub08 | Control Color: | Single And Dual Color |
| Application: | Controller For Advertising Led Sign | Warranty: | 2 Years |
| Display: | Graphics, Text | Usage: | Semioutdoor, Outdoor |
LED Controller Card ZH-U4 For Display Screen Control System USB+RS232 4xhub08 8xhub12
Specification:
| Hardware | Mode | ZH-U4 | ||
| Processor | ARM7 | |||
| LedOS System | internal LedOS V3.56 operating system | |||
| Capacity | 32M bit | |||
| Communication | RS232 | Support | ||
| RS485 | Can be customized | |||
| Distance | RS232 distance:120m | |||
| RS485 Distance:1200m(need to be customized | ||||
| USB | Support | |||
| Display adapter | 8xhub12;4xhub08 | |||
| Testing display module | Rapidly detect the unit plate if it has problem or not,such as blind points,dark light,full red,etc | |||
| Working voltage | 5V (3.2~5.5V) | |||
| Power | Below 0.5W | |||
| Environment Temperature | -30~70 Degree | |||
| Software | Operating System | Windows2000,NT,XP,Vista and Win7 | ||
| Software | LedControl V3 | |||
| Display funtion | multi-program play | At most add 32 programs,you can set multi-program fixed time play,timer play,time segment play,single program play | ||
| multi-partition | Each program adds 4 free partition at most at the same time (it’s not traditional pseudo partition), random size,position,alone operation | |||
| Program types | Image-text,subtitles,digital time,analog clock,animation | |||
| Time switch | Support software forced switch and time switch | |||
| Time display | Support digital time and analog clock | |||
| Motion way | 60 kinds of display ways and 42 kinds of quitting ways arbitrary collocation,over 2000 kinds of random assortments perfect collocation | |||
| Running side | Over 10 kinds of running modes,support single partition running mode | |||
| Brightness adjustment | Support 0-15 levels manual brightness adjustment | |||
| Specification | application Range | Support 1/4, 1/8, 1/16 scan,single and double color,full color unit plate | ||
| Max Pixels | 102400 | |||
| Support points | 3200X32 | |||
| Support points | 128x800 | |||
| OE | Set the"+" "-"through the software | |||
| DA | Set the"+" "-"through the software | |||
Pictures:

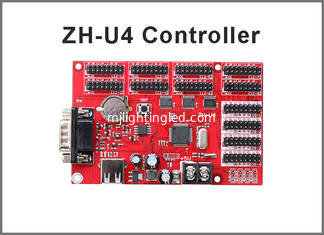

Pls check the pictures of ZH-U4 led display control card.
Multi-program play: At most add 32 programs, set multi-program fixed time play , timer play, time segment play, single program play
Program types: Image-text, subtitles, digital time, analog clock, animation
Time switch: Support software forced switch&time switch
Time display: Support digital time and analog clock
Motion modes: 60 kinds of display ways and 42 kinds of quitting ways arbitrary collocation, over 2000 kinds of random assortments perfect collocation
Running side: Over 10 kinds of running modes, support single partition running mode
Brightness adjustment: Support 0-15 level manual brightness adjustment
