small LED module 5730 SMD 2LED Light Waterproof LED backlight for mini sign and letter sigange DC12V

Small LED module 5730 SMD 2LED Light Waterproof LED backlight

for mini sign and letter sigange DC12V

Specifications:

Product: LED module 5730

Size:63*9*5mm

Voltage:DC12V

Power:0.8W/pc

Working Currency:20mA

Bean Angle:160dg

Color:White

Application:kinds of LED backlight for mini sign and letter sigange

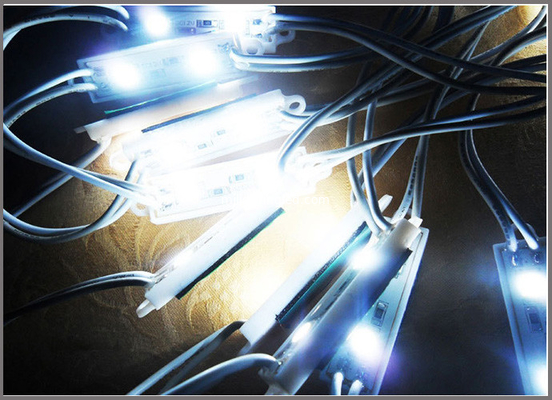

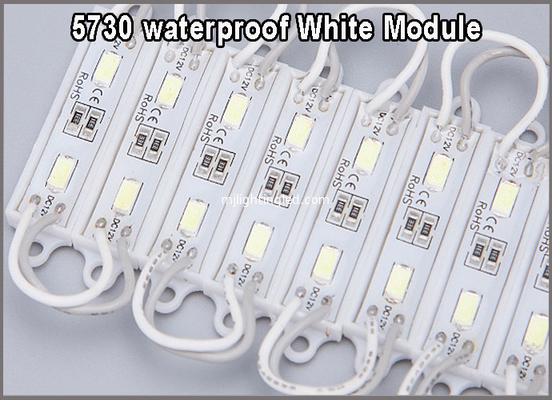

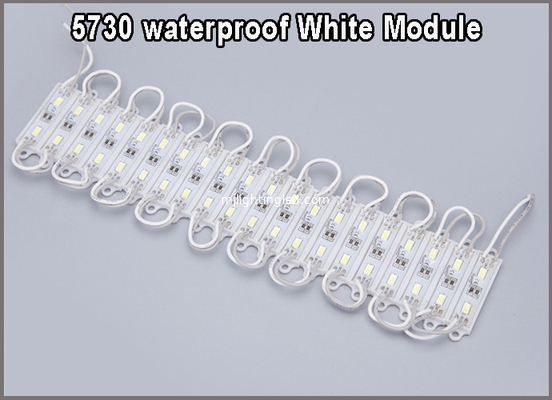

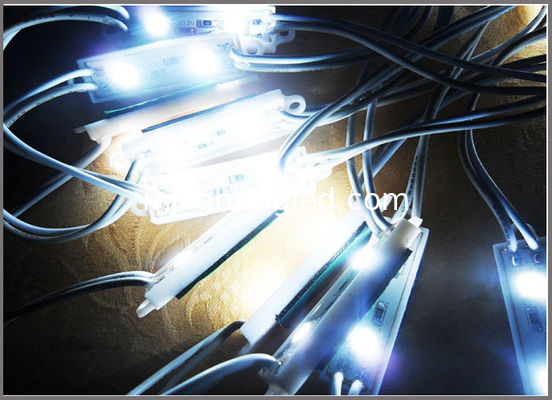

Pictures:

Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

Storage


• Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.

• If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.

Full support for all the dealers and agents.
Dongguan MJ photoelectric co.Ltd will give all the dealers and agents domestic & aborad full service and support on market extending and project operation. Service and support as below:

• To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.



• Building exhibition hall together with customers and agents.



• Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.

• Support customize to help dealers and agents satisfy their customers well.



• Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.

• Support professional technical service on pre-sale,in-sale and after-sale.

After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


• 1year warranty, life-long maintenance. Answer will be replied in 24hours.

• Technican will solve the problem on site.

• Give product upgrade solution to improve plane.

• We will give phone call interviews every month during warranty period

Notice:
1.Pls confirm the dirver is DC12V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.

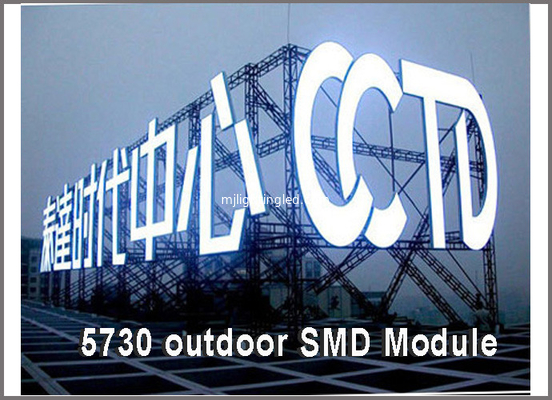

Application:

1.LED lighting box,led luminours letters,led sign.

2.LED outdoor advertising sign,bar,KTV.

3.LED Lighting engineering,led landscape engineering.

4.Hotel building external wall landscape.

5.Advertising signs,lighting signs,light box,3D lighting letters,blister word, other advertising lighting,ect.

6.Hotel ,KTV,Shopping malls, entertainment city indoor (dark trough) and exterior wall lighting,landscape layout,stage decoration,city lightings.

7.AD Lighting boxes in subway, airport,railway station ect.
