Product Details:
Payment & Shipping Terms:
|
| Products: | DC12V LED Illuminated Signs | Power: | 0.72W |
|---|---|---|---|
| Voltage: | DC12V | LED: | 5050 Led |
| Color: | Red | IP Rate: | IP67 |
| Application: | Led Sign | Size: | 75*12*05 Mm |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Competitive Price DC12V 5050 Modules LED Waterproof Led Channel
Letters Illuminated Signs CE ROHS
| Model No. | MJ-5050-R-outdoor |
| Light sources | 5050 SMD 3led |
| Chip material | AlGaInP |
| Input voltage | DC 12V |
| Lumen | 42-50LM |
| Power | 0.72w |
| IP rank | IP67 |
| Certification | CE,RoHS |
| Dimension | 75*12mm |
| Lifespan | 50000 hours |
| Color | Warm white/cool white/red/green/bule/yellow/RGB available |
| Angle Beam | 120dg |
| Operating temperature | —40-60℃ |
| Color temperature | 2700-20000K |
| Optical attenuation | 1000H≥5% |
| Color rendering index | 70Ra |
| Warranty | 2 year |
Feature:
1.High quality import LED chip, Top-encapsulation, good color purity, high brightness and low lighting failure.
2.High light effective; No light decay after 1000Hrs working;
3.Better heat dissipation,low-power,long-lifespan,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;
5.3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
Installation Tip:
—Silicon glue or 3M double tape directly fixing modules.Pls Cleaning or polishing module surface before the installation.
—Can use screw mounting the modules on the board.
—Single led module can be cut off.

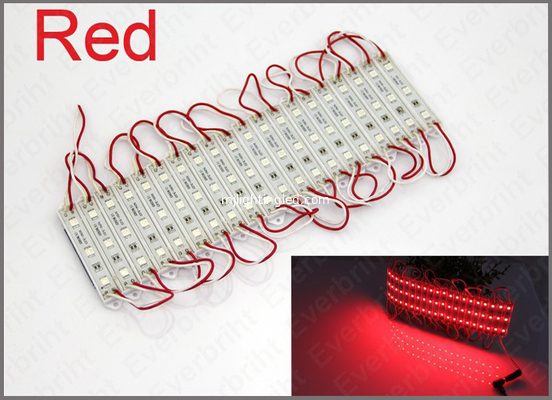

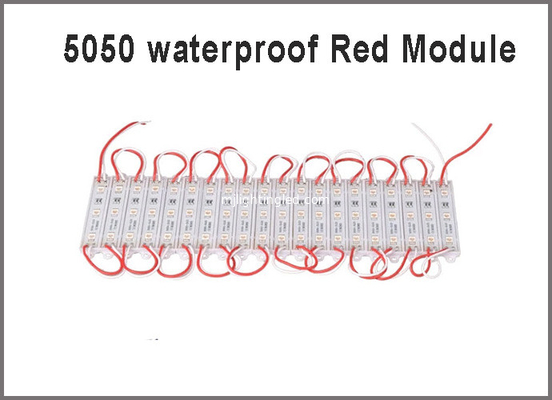

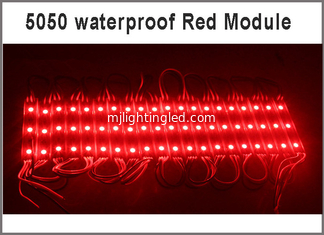

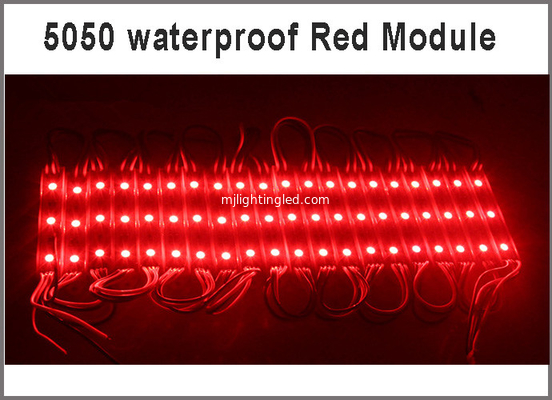

Pictures:
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
Package:
20pcs/string, 5000pcs/curton. Packing picture as below:
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
Application:
LED channel letters
Name board
Wine bar wall decoration
building and stage decoration.
Shop advertising
