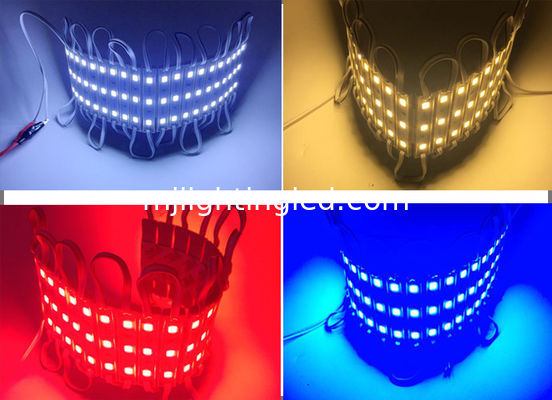

LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

Good quality 30 mm LED Pixel for sales
Good quality 30 mm LED Pixel for sales
I'm Online Chat Now

LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

China LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier
LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light supplier

Large Image :  LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

Product Details:

Place of Origin: China
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-3x5054

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Packaging Details: 5000pcs/curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Contact Now
Detailed Product Description
Color: Red Green Blue Yellow White Warm White LED: 5054SMD
Voltage: DC12V Power: 0.8W/pc
Size: 75*12*05 Mm Waterproof: IP68
Warranty: 3 Years Payment: T/T, Paypal, Western Union
Products: 3 SMD 5054 Application: Led Lightbox

                              Main products Hot seller



RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED Drivers RGB LED Controllers
LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light


Specifications:

Product Name LED Module 3 SMD 5054
Product Size 75*12*05 mm
Voltage DC12V
Power 0.8W/pc
Working Currency 20mA
Bean Angle 180°
IP Rate IP67
Working temperature -45℃~+70℃
Warranty 3 Years
Package 20pcs/roll
Emitting Color Red Green Blue Yellow white Warm white
Application Channel Letters Backlighting,Advertisement Signs Backlighting,Advertisement Light Boxes Backlighting


Pictures:
LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light
 LED modulesLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

Feature:

1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.

6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.


Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

Application pictures:







1) Channel Letters Backlighting
2) Advertisement Signs Backlighting
3) Advertisement Light Boxes Backlighting


LED module is widely used for all kinds of backlighting of LED channel letters,advertisement signs and Name board, Wire bar,wall,building and stage decoration.
LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip LightLED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

Package:

20pcs/string, 5000pcs/curton. Packing picture as below:

LED Module 3 SMD 5054 For Led Lightbox Cool White/ Warm White/ Red/ Green/ Blue Waterproof Strip Light

Storage


  • Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.



  • If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.





Full support for all the dealers and agents.
Dongguan MJ photoelectric co.Ltd will give all the dealers and agents domestic & aborad full service and support on market extending and project operation. Service and support as below:



  • To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.



  • Building exhibition hall together with customers and agents.



  • Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.

  • Support customize to help dealers and agents satisfy their customers well.



  • Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.

  • Support professional technical service on pre-sale,in-sale and after-sale.



After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


  • 1year warranty, life-long maintenance. Answer will be replied in 24hours.

  • Technican will solve the problem on site.

  • Give product upgrade solution to improve plane.

  • We will give phone call interviews every month during warranty period

Notice:

1.Pls confirm the dirver is DC5V output.



2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.



3.Pls make sure of the positive and negative of the string, usually the negative is white.



4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.



Common faults and troubleshooting:

1.the whole sting can’t be light up.

Resolve way:Inspect whether the string and driver main wire polar connected right or not.



2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones



3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
