Product Details:
Payment & Shipping Terms:
|
| Product: | P10 Module Led Display | Usage: | Outdoor |
|---|---|---|---|
| Module Size: | 32*16cm | Pixel Resolution: | 32*16pixels |
| Voltage: | DC5V | Power: | 20W |
| Color: | RED | Pixels: | 10mm |
| Warranty: | 2 Years | Paypal: | Paypal,Western Uniion |

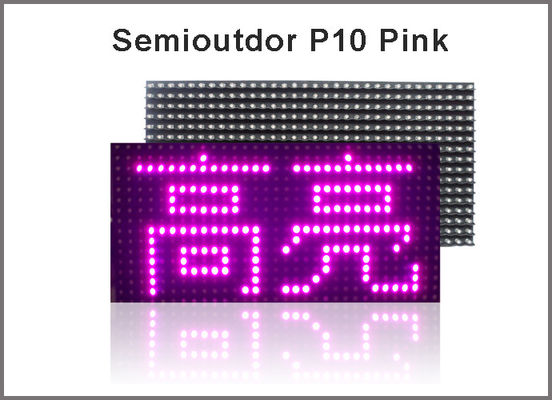

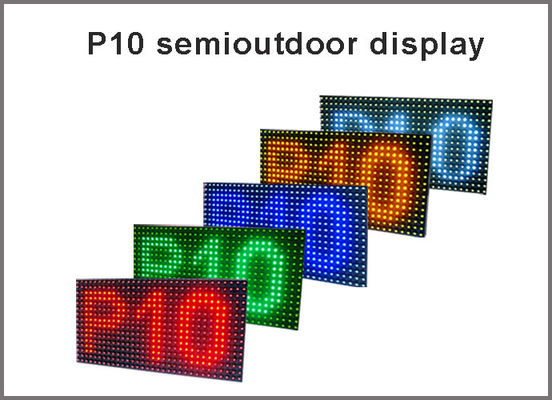

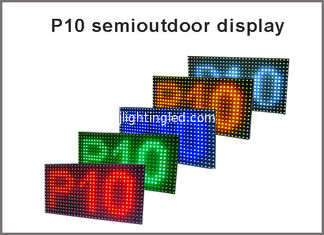

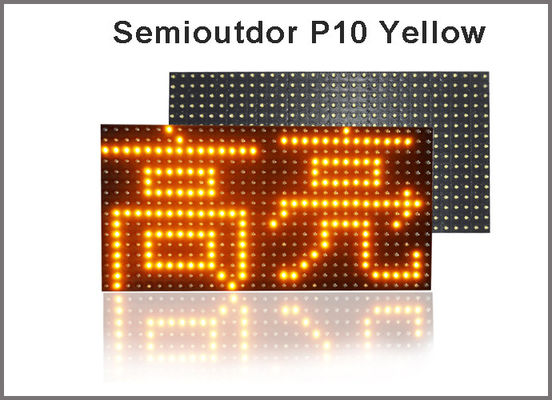

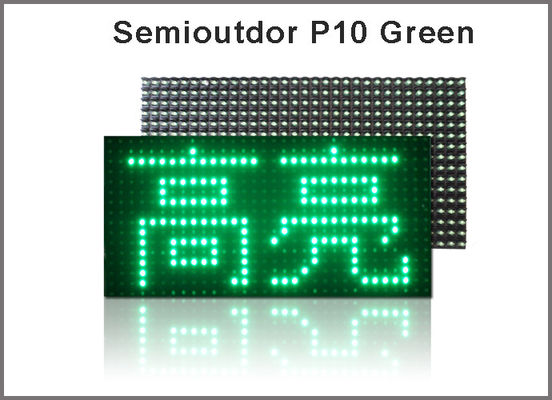

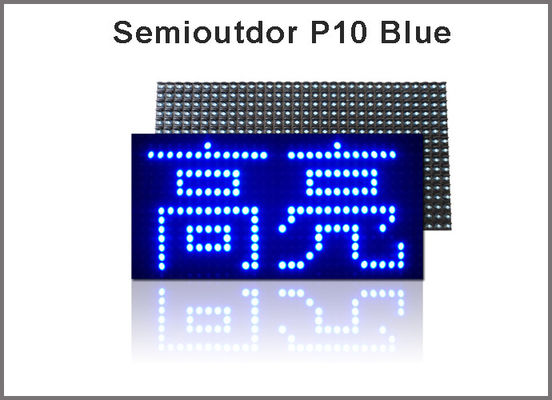

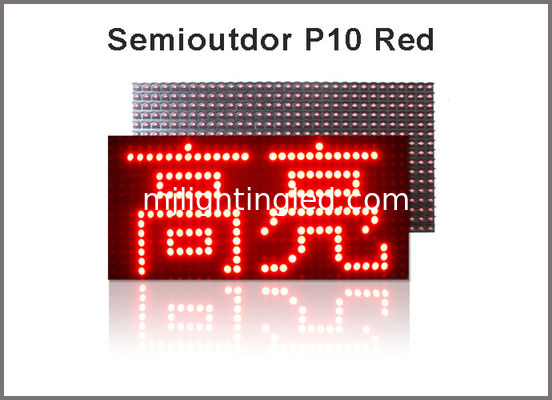

Semioutdoor/Indoor P10 LED display modules red green blue yellow white display panel light message board
Feature:
✅ Self-developed new module structure, eliminates mosaic effect existing in old-style kits based on optical principle
✅ 1.6mm lamp-driver integrated PCB board, LED beads on front, SMD integrated IC chips on the back
✅ Unique mask design, better flatness, seamless splicing, no grid effect after screen assembly
✅ IC back side sprayed with three-proof silicone: waterproof, anti-corrosion, anti-salt spray
Specification:
| Item | P10 module led display |
| Pixels Pitch | 10mm |
| Control Mode | Synchronous/Asychronous |
| Cabinet Size | 320*320mm |
| Driver Mode | 1/4 |
| Pixel Density | 10000 pixels/m2 |
| Refresh Rate | ≥60HZ |
| Color | Red, Green, Blue,Yellow,White |
| System Operating Platforms | WIN98,WINXP,WIN2000…ect |
| Panel Resolution | 32*16 |
| Input Voltage | AC200-265V |
| Resolution | 1024 pixels |
| Data Communication | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION |
| The Best View Distance | 10-100m |
| The Best View Angle | Level:90°-130°; Up:30°-45°; Down:10°-20° |
| Control System | PCTV card+DVI Graphics+ Main Controller+Optical fiber |
| Brightness | ≥2000cd/m2 |
| MTBF | ≥1000hours |
| Lifespan | 10,0000H |
| Max Power Consumption | ≤400W/m2 |
| Failed Rate |
<0.02% |
1. Ensure flat installation base. Uneven bracket will lead to poor splicing gap and grid display.
2. Calculate power load reasonably. Do not overload the power supply to avoid unstable brightness or module burnout.
3. Do not install in environments with strong corrosive gas.
4. Complete full lighting test before sealing the screen frame, confirm all modules display normally.
5. During transportation and installation, modules wrapped by protective film can prevent surface damage; remove film after installation.
Applications:
Building exterior wall advertising, Street roadside billboards ,Stadium & gymnasium
FAQ
Q1: What is the service life?
A: Adopting imported PC raw material. The module kit is anti-deformation, with 10 years service life under normal working environment.
Q2: Are the connectors reliable?
A: All connectors pass 100-hour cyclic aging test. Signal sockets are customized with special pin size and plating process for stable signal transmission.
Q3: Can I replace a single broken module on the large screen?
A: Yes. Single module can be disassembled and replaced conveniently for maintenance, no need to take down the whole screen.
Q4: What is the working temperature range?
A: -20℃ ~ +55℃, works stably in most outdoor climate.
