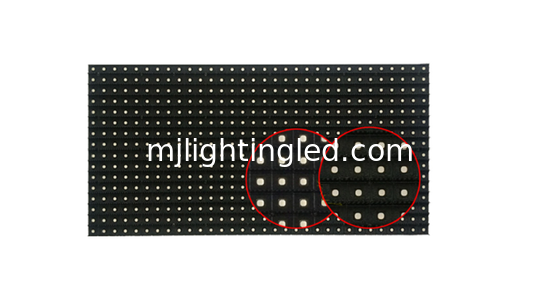

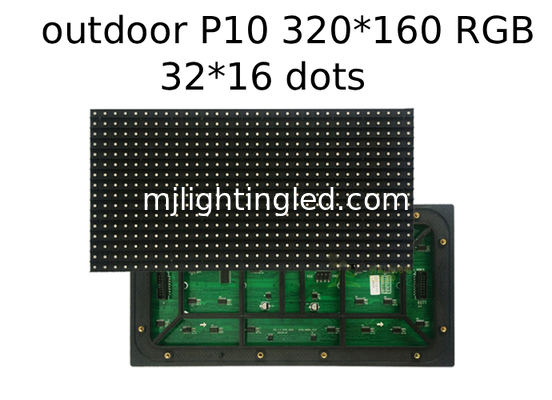

Product Details:
|
| Product: | P10 Outdoor Display | Size: | 320*160mm |
|---|---|---|---|
| Pixels: | 32*16pixels | Color: | RGB |
| LED: | 3535SMD | Scan Mode: | 1/4 Scan |
| Port: | Hub75 | Wattage: | 500W/㎡ |
1. We provide good quality products and keep the faith "quality first and service first"
2. Our display module have the feature of " light " "thin" and "stable".
3.Product install convenient and easy with the function of wind and dusty proof.
3.Quick and easy assembly, removing system, save loading time.
| 01 | Product | Outdoor P10 |
| 02 | Size | 320*160 |
| 03 | Pixels | 32*16dots |
| 04 | Pixel Pitch | 10mm |
| 05 | Scanning Mode | 1/4 scan |
| 06 | Pixel density | 10000 (dot/㎡) |
| 07 | LED | SMD3535 |
| 08 | Pixel configuration | 1R1G1B |
| 09 | Brightness | ≥6500CD/㎡ |
| 10 | Driving Method | Constant current drive |
| 11 | Port | hub75 |
| 12 | Optimum Viewing Distance | 8~100m |
| 13 | Lifetime | 100,000hours |
| 14 | Power max | 800W/m2 |
| 15 | Cabinet size | 960mm*960mm |
LED modules packed with protective film and foam inside carton for safe shipping.
1. Cut off power supply before installation. Never operate with power on.
2. Check each LED module for damage, scratches or lamp bead failure before assembly. Do not use defective modules.
3. Protect the lamp surface. Avoid scratching the mask and lamp beads with hard tools.
4. Handle modules gently. Do not drop or squeeze the panel to prevent lamp bead damage.
5. Align the connectors correctly when plugging in. Do not force insertion; avoid pin bending.
Display module P10 used for making advertising message board in the place as beblow:
Commercial shopping malls Building ,exterior wall advertising ,City cultural squares
Street roadside billboards , conference room .
Q1: What does lamp-driver integrated PCB mean?

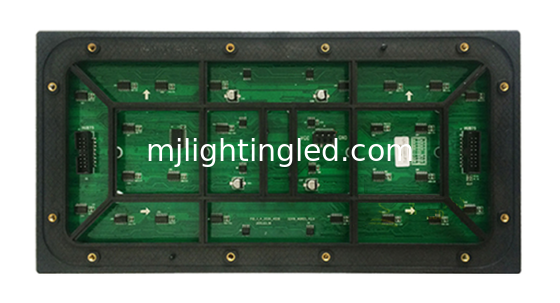

A: LED beads are on the front of PCB, and the driver IC chips are mounted on the back. This design makes the module thinner and easier for splicing.
Q2: Will there be mosaic or grid effect after splicing?
A: Our self-developed mask has good flatness. With correct installation, it can hide splicing seams perfectly without grid or mosaic phenomenon.
Q3: What is the service life?
A: Adopting imported PC raw material. The module kit is anti-deformation, with 10 years service life under normal working environment.
Q4: Are the connectors reliable?
A: All connectors pass 100-hour cyclic aging test. Signal sockets are customized with special pin size and plating process for stable signal transmission.
