Product Details:
Payment & Shipping Terms:
|
| Size: | 75*12mm | Color: | White |
|---|---|---|---|
| Products: | 5730 LED Modules | Voltage: | DC12V |
| Wattage: | 0.8W | View Angle: | 160dg |
| Waterproof: | IP68 | LED: | Led 5730 |
| Usage: | Letras LED Impresas En 3D |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5730 Super Bright Single Color And RGB LED Module String Lights For Advertising Lighting Letras LED Impresas En 3D
Specifications:
| Product Name | 5730 led modules |
| Product Size | 75*12mm |
| Colors |
white color, single color |
| Voltage | DC 12V |
| Power | 0.8W |
| Working Currency | 20mA |
| Bean Angle | 160° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -25℃～+45℃ |
| Warranty | Three Years |
| Package | 20pcs/string, 200pcs/pcakge, 3000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Pink |
| Application |
1.Advertising lighting letters 2.Letras LED Impresas En 3D 3.LED Channel letters 4.3D Printed LED Marquee Letters |
Features:
1.Top-encapsulation ,high brightness,small lighting failure.
2.High light effective; No light decay after working 1000Hrs;
3.Better heat dissipation,low-power,long-life,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;

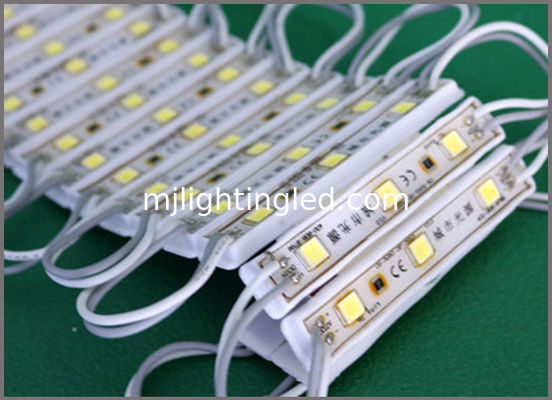

Pictures:
The product uses high quality LED light source,good luminous effect, Shell material made of imported PC material, fireproof, anti-UV, no easy become yellowing and other excellent performance.Wide range of application scenarios,Science and technology exhibition, lighting art,it can control by music and art with 3D effects,Stage stereo lighting,SD card controller playback and other effects.
Installation:
Tips:
—Silicon glue or 3M double tape directly fixing modules, but before installation.
Cleaning or polishing module surface.
—Can use screw mounting the modules on the board.
—Single led module can be cut.
Application.
LED modules is widely used for lighting letters, lighting signboard, billboard,led channel letters, decoration, rgb pxiels display, decoration,building decorating...ect
Other products. (pls click the picture to open the details page of the products)
Notice:
1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
