5050 SMD LED modulo white color waterproof for led backlight

Good quality 30 mm LED Pixel for sales
Good quality 30 mm LED Pixel for sales
I'm Online Chat Now

5050 SMD LED modulo white color waterproof for led backlight

China 5050 SMD LED modulo white color waterproof  for led backlight supplier
5050 SMD LED modulo white color waterproof  for led backlight supplier 5050 SMD LED modulo white color waterproof  for led backlight supplier 5050 SMD LED modulo white color waterproof  for led backlight supplier 5050 SMD LED modulo white color waterproof  for led backlight supplier 5050 SMD LED modulo white color waterproof  for led backlight supplier 5050 SMD LED modulo white color waterproof  for led backlight supplier

Large Image :  5050 SMD LED modulo white color waterproof for led backlight

Product Details:

Place of Origin: China(mainland)
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-5050-W-outdoor

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: 5000pcs/curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Detailed Product Description
Products: 5050 SMD LED Linear Module Power: 0.72W
Voltage: DC12V LED: 5050 Led
Color: White IP Rate: IP67
Application: Led Sign Size: 75*12*05 Mm

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 5050 SMD LED modulo white color waterproof  for led backlight 5050 SMD LED modulo white color waterproof  for led backlight
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED Drivers RGB LED Controllers
5050 SMD LED modulo white color waterproof  for led backlight 5050 SMD LED modulo white color waterproof  for led backlight 5050 SMD LED modulo white color waterproof  for led backlight

5050 SMD LED modulo white color waterproof  for led backlight



5050 SMD LED modulo white color waterproof for led backlight



Model No. MJ-5050-W-outdoor
Light sources 5050 SMD 3led
Chip material AlGaInP
Input voltage DC 12V
Lumen 42-50LM
Power 0.72w
IP rank IP67
Certification CE,RoHS
Dimension 75*12mm
Lifespan 50000 hours
Color Warm white/cool white/red/green/bule/yellow/RGB available
Angle Beam 120dg
Operating temperature —40-60℃
Color temperature 2700-20000K
Optical attenuation 1000H≥5%
Color rendering index 70Ra
Warranty 2 year



Feature:

1.High quality import LED chip, Top-encapsulation, good color purity, high brightness and low lighting failure.



2.High light effective; No light decay after 1000Hrs working;



3.Better heat dissipation,low-power,long-lifespan,maintenance-free;



4.Waterproof with ABS housing & Epoxy sealed;



5.3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.







Installation Tip:

—Silicon glue or 3M double tape directly fixing modules.Pls Cleaning or polishing module surface before the installation.

—Can use screw mounting the modules on the board.



—Single led module can be cut off.



Pictures:

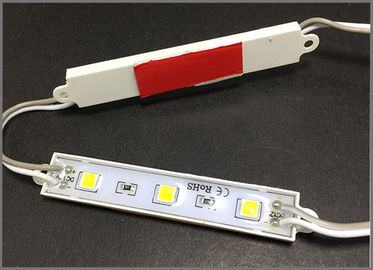

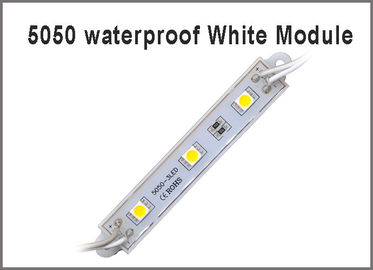

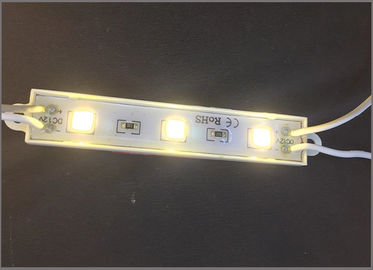

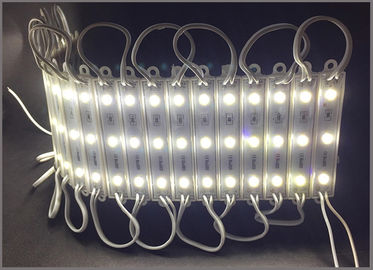

5050 SMD LED modulo white color waterproof  for led backlight

5050 SMD LED modulo white color waterproof  for led backlight5050 SMD LED modulo white color waterproof  for led backlight5050 SMD LED modulo white color waterproof  for led backlight

5050 SMD LED modulo white color waterproof  for led backlight

5050 SMD LED modulo white color waterproof  for led backlight

5050 SMD LED modulo white color waterproof  for led backlight

5050 led

After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


  • 1year warranty, life-long maintenance. Answer will be replied in 24hours.

  • Technican will solve the problem on site.

  • Give product upgrade solution to improve plane.

  • We will give phone call interviews every month during warranty period



Package:

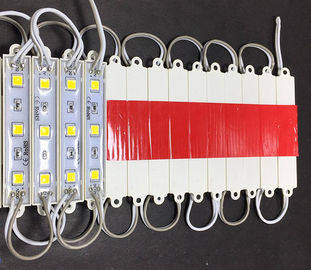

20pcs/string, 5000pcs/curton.  Packing picture as below:

5050 SMD LED modulo white color waterproof  for led backlight





Storage


  • Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.



  • If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.



Application:



LED channel letters

Name board

Wine bar wall decoration

building and stage decoration.

Shop advertising



5050 SMD LED modulo white color waterproof  for led backlight
