5730 3W led Module 12V 3leds modoles red green blue yellow white pink with 160degree lenz for Light Box

5730 3W led Module 12V 3leds modoles with 160degree lenz for Light Box

Specifications:

Product Name: 5730 led module            Size:74*20mm

Working Voltage: DC12V                           Power/pcs: 3W/pcs

Working Currency: 20mA                      Bean Angle: 180dg

IP Rate: IP67                                                Warranty: 3 years

Package: 20pcs/rolls, 2000pcs/curton    Color: R/G/B/Y/B

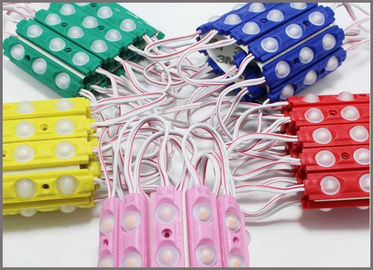

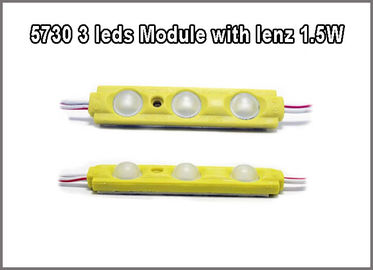

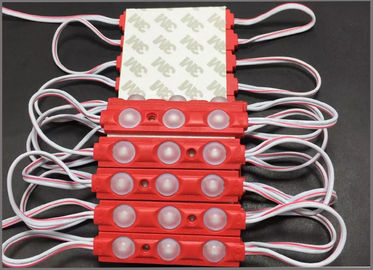

Pictures:

1.High quality import chip,Top-encapsulation ,high brightness,small lighting failure.
2.High light effective; No light decay after working 1000Hrs;

3.Better heat dissipation,low-power,long-life,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;

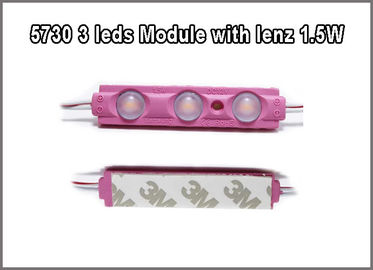

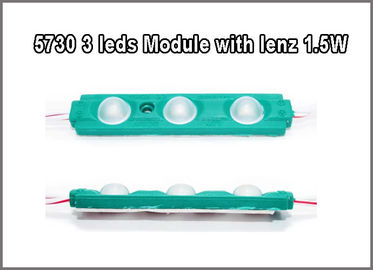

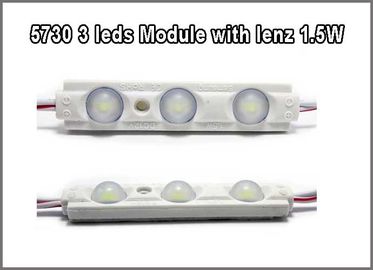

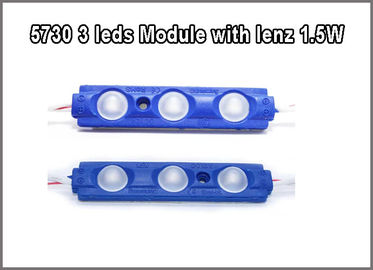

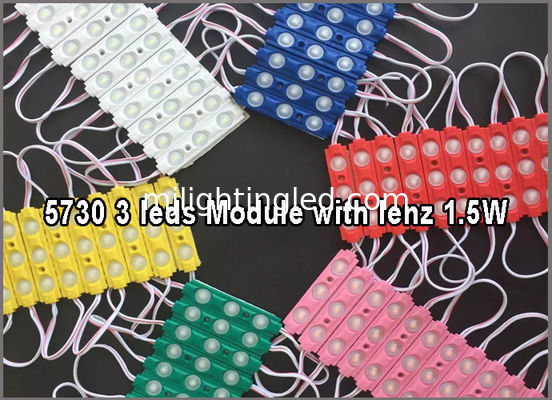

Pictures:

The product uses high quality LED light source,good luminous effect, Shell material made of imported PC material, fireproof, anti-UV, no easy become yellowing and other excellent performance.Wide range of application scenarios,Science and technology exhibition, lighting art,it can control by music and art with 3D effects,Stage stereo lighting,SD card controller playback and other effects.

Installation:

Tips:

—Silicon glue or 3M double tape directly fixing modules, but before installation.

Cleaning or polishing module surface.

—Can use screw mounting the modules on the board.

—Single led module can be cut.

Application pictures:
Advertising lighting letters , Name board, Wire bar, wall,building and stage decoration.
Backlight of giant signage and channel letter
Marine signal and task lighting
Decoration lights for furniture: shelf, wardrobe, etc.
Architectural outdoor lights
Decoration lights for bar, pub, club, disco

Notice:

1.Pls confirm the dirver is DC12V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.

4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.

Common faults and troubleshooting:

1.the whole sting can’t be light up.

Resolve way:Inspect whether the string and driver main wire polar connected right or not.

2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones

3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
