Home ProductsZhongHang Display Control card

ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller

Good quality 30 mm LED Pixel for sales
Good quality 30 mm LED Pixel for sales
I'm Online Chat Now

ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller

China ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller supplier

Large Image :  ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller

Product Details:

Place of Origin: China
Brand Name: ZhongHang
Certification: CE ROHS
Model Number: ZH-E7

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: Netural Package
Delivery Time: 2-5days after getting payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000pcs/day
Detailed Product Description
Product: ZH-E7 LED Display Control Card Voltage: DC5V
Communication: Network & USB &RS232 Pixels: 512*1024,128*4096
Port: 2XPIN50 Control Color: Single And Dual Color
Application: LED Display Control Card Warranty: 2 Years
Display: Graphics, Text Usage: Semioutdoor, Outdoor

                                     Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller










ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 1xpin50 Single & Dual color Controller



Specification:

Hardware Mode ZH-E7
Processor ARM7
LedOS System internal LedOS V3.35 operating system
Capacity 16M bit
Communication RS232 Support
Network Support
Distance RS232 Distance:120m
Network Distance:150m
USB Support
Display adapter 2XPin50
Testing display module Rapidly detect the unit plate if it has problem or not,such as blind points,dark light,full red,etc
Working voltage 5V (3.2~5.5V)
Power Below 0.5W
Environment Temperature -30~70 Degree
Software Operating System Windows2000,NT,XP,Vista and Win7
Software LedControl V3
Display funtion multi-program play At most add 32 programs,you can set multi-program fixed time play,timer play,time segment play,single program play
multi-partition Each program adds 4 free partition at most at the same time (it’s not traditional pseudo partition), random size,position,alone operation
Program types Image-text,subtitles,digital time,analog clock,animation
Time switch Support software forced switch and time switch
Time display Support digital time and analog clock
Motion way 60 kinds of display ways and 42 kinds of quitting ways arbitrary collocation,over 2000 kinds of random assortments perfect collocation
Running side Over 10 kinds of running modes,support single partition running mode
Brightness adjustment Support 0-15 levels manual brightness adjustment
Specification application Range Support 1/4, 1/8, 1/16 scan,single and double color,full color unit plate
Max Pixels 524288
Support points 512x1024
Support points 256X2048
OE Set the"+" "-"through the software
DA Set the"+" "-"through the software

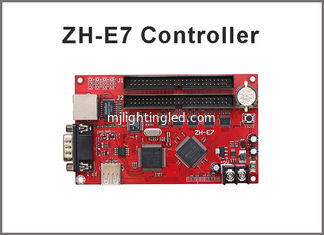

Pictures:



Pls check the pictures of ZH-E7 led display control card.



ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller

Control System



led Control System is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.



5V ZH-Um USB port controller card display screen led module control system Multi-area Display Asynchronous5V ZH-Um USB port controller card display screen led module control system Multi-area Display Asynchronous5V ZH-Um USB port controller card display screen led module control system Multi-area Display Asynchronous



Display worked with control card:

ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller



Other products:

We also provide led modules, led pixel light.... They are mainly used for advertising lightings.

ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color ControllerZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color ControllerZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color ControllerLED Strip light

ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color ControllerZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color ControllerZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color ControllerZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller


ZH-E7 LED display controller Network+USB+RS232 Port 512*1024,128*4096 Pixels 2xpin50 Single & Dual color Controller
