SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale

China SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale supplier
SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale supplier SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale supplier SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale supplier

Large Image :  SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale

Product Details:

Place of Origin: China(mainland)
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-5x5050-G-outdoor

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: 2000pcs/curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Detailed Product Description
Product: 5050 SMD 5LEDs Voltage: DC12C
LED Mode: 5050 Power: 1.2W
Size: 75*12*5 Waterproof: Yes
Warranty: 3 Years Usage: Backlight Modules Light
Application: Light Advertising Lamp Item: 5LEDs LED Module



SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale

Specifications:

Product Name 5050SMD 5 LEDs led module
Product Size 75*12*05 mm
Voltage DC12V
Power 1.2 W/pc
Working Currency 20mA
Bean Angle 180°
IP Rate IP67
Working temperature -45℃~+70℃
Warranty 3 Years
Package 20pcs/roll
Emitting Color Green
Application LED module is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.


Pictures:

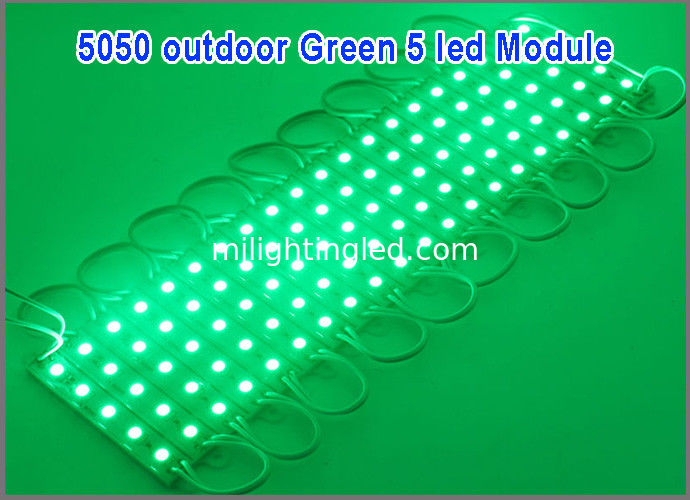

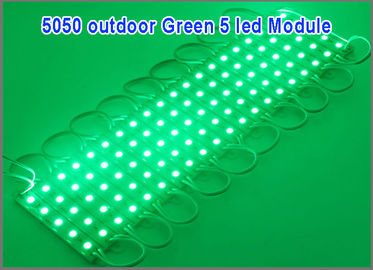

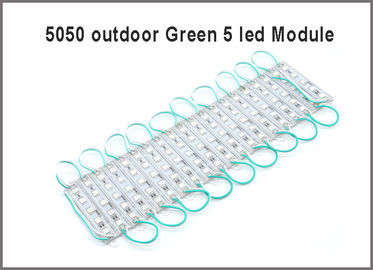

Pls check pictures of SMD 5050 5 LED module

SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V WholesaleSMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale
SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale





SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale






Feature:

1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.

6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.


Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .
SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale
Application pictures:

1.Outdoor/Indoor Use

2.Cove Lighting

3.Marine light/Path and contour lighting/Task lighting

4.Backlight for signage/ letters

5.Architectural lights for Canopy, Corridor, Window

6.DIY Lights for home use

7.Replacement of Fluorescent light

8.Decorative lights for holiday, event, show, exhibition

SMD 5050 5LEDs Module Green Waterproof Light Advertising lamp DC 12V Wholesale
