Product Details:
Payment & Shipping Terms:
|
| Color: | Green | LED: | 5050SMD |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Product: | 5050SMD 12V Led Modules | Application: | Advertising Light |
12V led modules light 5050SMD 3LED light for led letter backlight signs
Specifications:
| Items | 5050 smd module | Size | 75*12*5 |
| Voltage | DC12V | Power | 0.8W/pc |
| Currency | 20mA | Warranty | 3years |
| Color | Green | Application | 3D LED backlight signs |

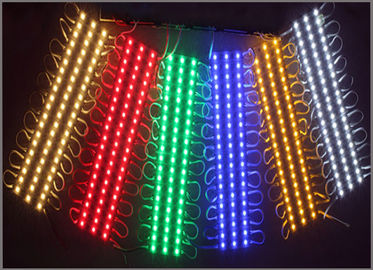

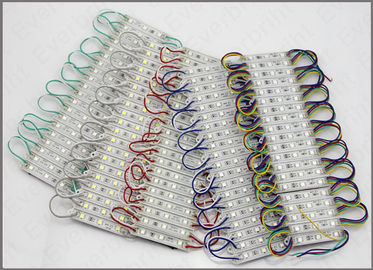

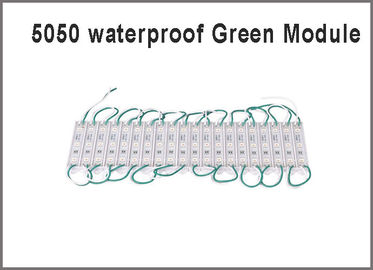

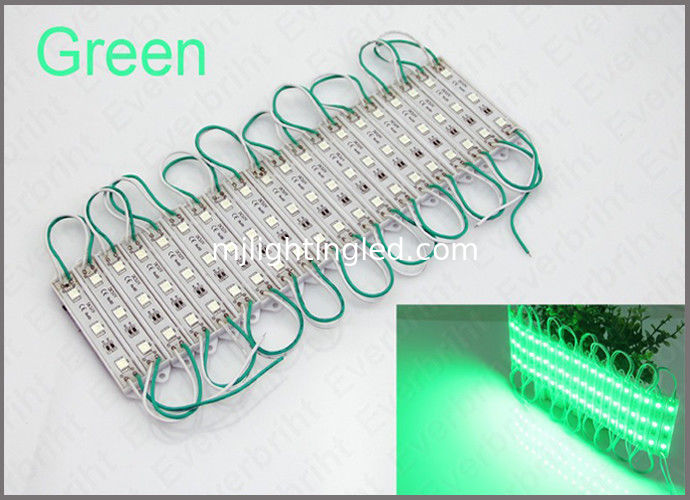

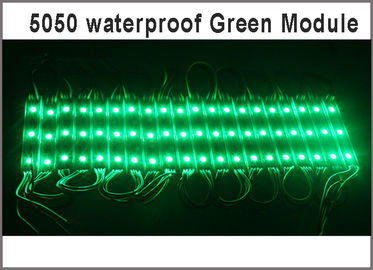

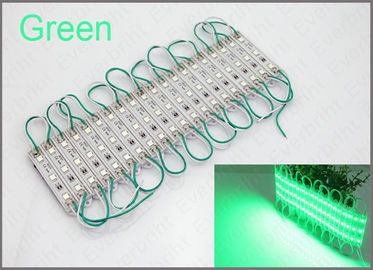

Pictures:
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.
2.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .
Package:
Where the modules will be used ?
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
1year warranty, life-long maintenance. Answer will be replied in 24hours.
Technican will solve the problem on site.
Give product upgrade solution to improve plane.
We will give phone call interviews every month during warranty period
