Exposed LED Light Channel Letters 9mm Pixel Module 5V LED For Sign

Exposed LED Light Channel Letters 9mm Pixel Module 5V LED For Sign

Specifications:

Products: 9mm yellow LED Pixel Module    Power: 0.12W

Hole size: 9mm                                             Currency: 20mA

Voltage:DC5V                                               IP Rate:IP67

Warranty: 3 years                                         Package:50pcs/string

Color: blue                                                   Application:Advertising Signs

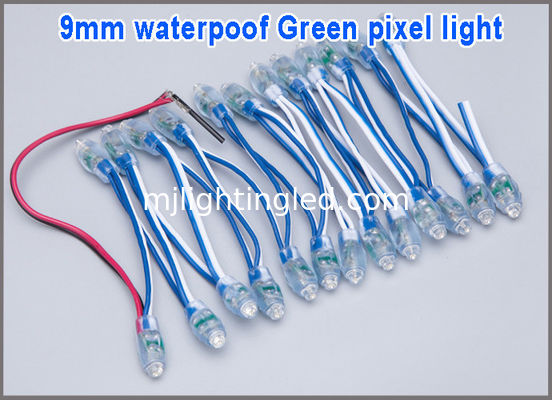

Pictures:

Feature

1. IP68 full waterproof design, works reliably for outdoor signage in rainy and humid environments

2. Low voltage design, safe installation for advertising channel letters and logo backlighting

3. High brightness LED chip, stable light output, low power consumption and long service life

5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.

6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.

Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.

For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over

Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than

160/0.1=1600pcs.

 2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers

Will be burn out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

Package:

Application pictures:

1.Channel letters

2.Advertising signage lighting

3.Lighting source for light box, lighting box,signaboards,logos,advertising boxes.

4.Advertisement bill board inside led lighting

5.Decorative lights for holiday, event, show, and exhibition

6.DIY lighting and home decoration use

7.Landscapes and stage decorations...

Note

1.when connecting the wirelines to the power supply , please careful , if wrongly , the lights will not work .

2.please don't' connect the lights to AC220V , or the lights will be damaged .

3.The diameter of puching hole is at 9mm , 12mm , 16mm . Please punch the hole based of the diameter of lights . The pitch between lights is from 20-50mm , please design it according of the project . Generally ,more close , more bright and also more expensive the cost .

3.Installing lights : please clean the frame ahead before installing lights , For RGB full color pixel led lights , please exactly install as the diagram.

4.Connecting:Generally , the wastage of power is about 20% ; so not connect all the lights together only by one line wireline . For keeping every light enough power , have to use several wirelines according to the projects , we advise that every 300pcs lights share 1pcs wirelines ,and connect to the power supply directly .

FAQ

Q1: What is this 9mm LED pixel light used for?

A: It is mainly applied for advertising letter signs, channel letters, logo backlighting, store front signage and small outdoor illuminated signs.

Q2: Is this LED pixel waterproof? What is the IP rating?

A: Yes, it is IP68 waterproof. It can work normally outdoors under rainy weather, suitable for exterior advertising signs.

Q3: What voltage does this 9mm LED pixel use?

A: It adopts low voltage design, safe to use. Please confirm the working voltage before installation.
