Product Details:

Place of Origin: China(mainland)
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-DMX512-CON

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Packaging Details: Neutro-packing
Delivery Time: 2-3days
Payment Terms: T/T, Wester Union, Paypal
Supply Ability: 3000pcs/day
Contact Now
Detailed Product Description
Product: RGB LED Controller Item: Controller DMX512
Voltage: 5-4V Internal Patterns: 102patterns
Material: Aluminum Used For: RGB LED Light Fullcolor Pixels
LED Quantity: 1028pixels SD Card: Available
Programmable: Yes

                                       Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller








RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803



Specification file download: DMX512 Controller Spec..pdf



Specification

Product DMX512 RGB LED controller
Input Voltage ---
Output Voltage DC5-24V
Pixel quantity 1028Pixels
Pattern internal 102 patterns
SD supported Yes
Rainproof No
Application Used for control RGB LED pixel light with IC




Features:



1. The control can be equipped with SD card.

2. When the boot press [ON/OFF] button will display SD00 or SD01, then press [UP] can convert SD00 and SD001.

SD00 representatives can internal pattern, SD01 representatives calling SD of tricks. RJ-FSD-100 can be sent to DMX512 and TTL signals.

3. Using standard DMX512 choose built-in patterns and speed.

4. Can be more than one the synchronization signal recommend no more than 50meters, measured 10meters.

5. The maximum drive 2048pixels. The maximum refresh rate of 30 frame rate(<512 pixels).

6. The maximum distance between the controller and lighting TTL is <15m:485 signal <30meters TTL.



Simultaneously and then 10 or so pieces.

Power supply: DC5-24V
Specification: L122*W73*H25
Weight: 0.2KG
Power: 3W



Support IC:

Support IC Specific Models
TM TM1809 TM1812 TM1914 TM1829
UCS UCS2903 UCS2909 UCS2912 UCS1903 UCS1909 UCS1912
WS WS2801 WS2811 WS2812
INK1003 INK1003
LPD LPD6803 LPD8806 LPD1109
D705 D705
SM SM16716 SM16726 16703
DMX DMX512 WS2821A
SK SK6812
APA APA102



Choose the right IC:

RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803

Press ON/OFF, When it display OFF, Then press MODE/Speed to choose the IC mode. After doing it, Press ON/OFF to quit out.







Setting Pixel quantity

RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803

Press ON/OFF, When it display OFF, Then press UP/DOWN to setting the quantity. After doing it, Press ON/OFF to quit out.







LED light connect way with DMX512 controllers.



RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803

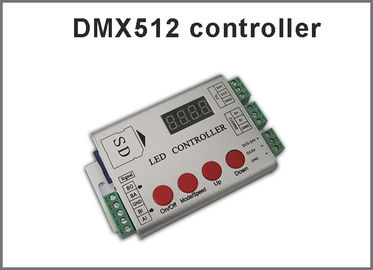

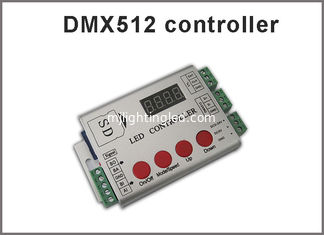

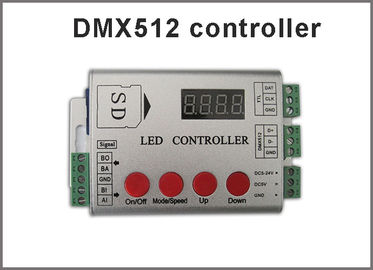

Pictures of DMX512 RGB Controller:



This controller is used for control RGB LED lightings to change the color . It contains more than 100kinds of patters, if you don't satisfied with any of them, you can make the right program you like.    Pictures of controller & control LED strip light and fullcolor led pixel light.

RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803RGB Controller DMX512 control RGB LED light for fullcolor led light programmable control DMX512 1903 2801 6803
