Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign

Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign

China Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign supplier

Large Image :  Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign

Product Details:

Place of Origin: China--5730 LED module
Brand Name: MJ-5730 LED module
Model Number: MJ-5730-R-outdoor

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: 5730 led module
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Detailed Product Description
Color: RED LED: 5730SMD
Voltage: DC12V Power: 0.8W/pc
Size: 75*12*05 Mm Waterproof: IP68
Warranty: 3 Years Payment: T/T, Paypal, Western Union

                                     Main products Hot seller
RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller




Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign

Specifications:

Product Name 5730 LED Module light
Product Size 75*12*05 mm
Voltage DC12V
Power 0.8 W/pc
Working Currency 20mA
Bean Angle 180°
IP Rate IP67
Working temperature -45℃~+70℃
Warranty 3 Years
Package 20pcs/roll
Emitting Color RED
Application LED module is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.

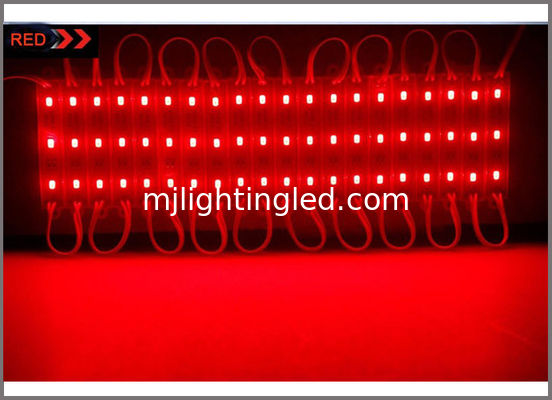

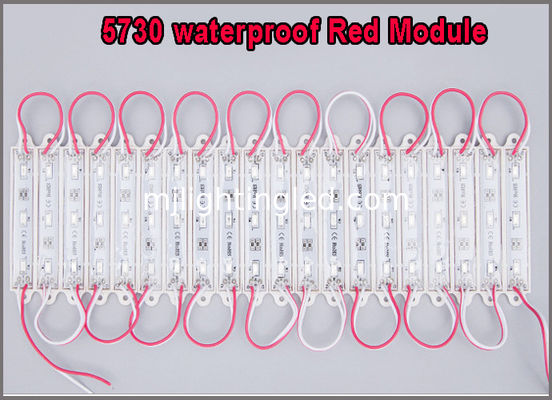

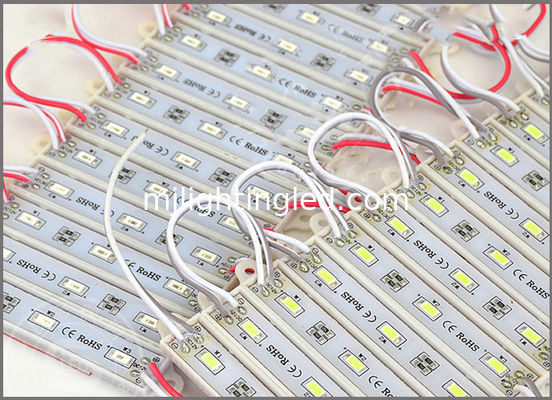

Pictures:

 Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising SignSuper Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign

Feature:

1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.

2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.

3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.

4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.

5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.

6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.


Driver select and installation:

1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
160/0.1=200pcs.

 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.

3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

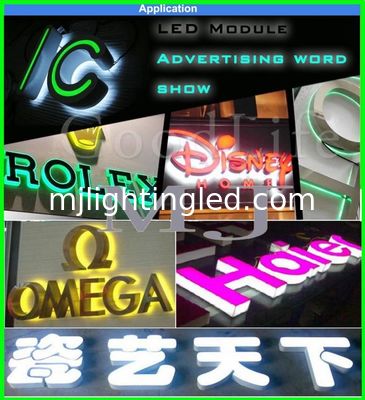

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
Super Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising SignSuper Bright injection molding 5730 red LED Module 3 LEDS Light Waterproof For LED Channel Letter Advertising Sign


Notice:
1.Pls confirm the dirver is DC12V output.

2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.

3.Pls make sure of the positive and negative of the string, usually the negative is white.
