Product Details:

Place of Origin: China LED pixel light
Brand Name: MJ LED pixel light
Certification: LED pixel light
Model Number: MJ-9mm-5G

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs/string
Price: LED pixel string
Packaging Details: 50pcs/string
Delivery Time: 3-5days after payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10,000,000pcs/day
Detailed Product Description
Color: Red/Green/Blue/Yellow/White Voltage: DC5V
Power: 0.12W Waterproof: IP68
Products Diameter: 6mm 9mm 12mm Cable Length: 8cm
Usage: LED Pixel Light Warranty: 3 Years
Paypal: T/T,Paypal,Western Union

                                       Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led 5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight



Specifications:

Product Name 6mm 9mm 12mm led pixel signage
Product Size 6mm 9mm 12mm diameter
Hole size 6mm 9mm 12mm diameter.
Voltage DC 5V
Power 0.12W
Working Currency 20mA
Bean Angle 180°
Material PVC
IP Rate IP68
Working temperature -45℃~+70℃
Warranty Three Years
Package 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton
Emitting Color  Red, Yellow,Blue,Green,White
Application This led pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.

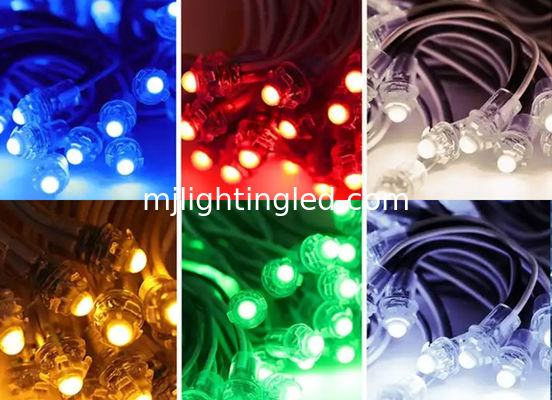

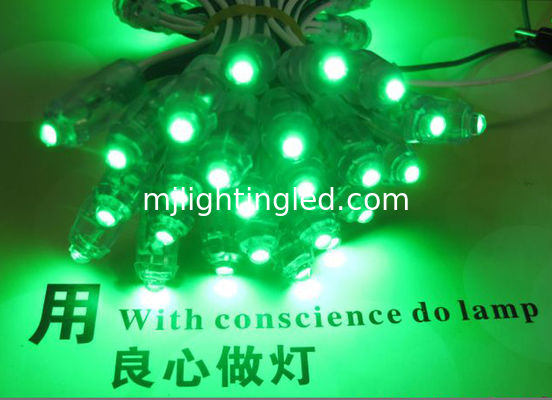

Pictures:

5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight



5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight

5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight

5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight



Feature:



1.Produce with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.



2.Compared with traditional lights, LED light has the advantage of energy saving, environment friendly, long lifespan, Stable well, install conveniently, ect.



3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.



4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.



5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.



6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.







Driver select and installation:



1.Total load power of the driver should not be over than 80% of the driver rated power.

For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over

Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than

160/0.1=1600pcs.



 2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers

Will be burn out.



3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight



Package:

 5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight



Application pictures:

5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight5V 6mm 9mm 12mm LED pixel light Christmas decorative lighting signage led channel letters nameboard led backlight



Notice:

1.Pls confirm the dirver is DC5V output.



2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.



3.Pls make sure of the positive and negative of the string, usually the negative is white.



4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.



Common faults and troubleshooting:

1.the whole sting can’t be light up.

 Resolve way:Inspect whether the string and driver main wire polar connected right or not.



2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones



3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
