Home ProductsP10 Semioutdoor single color

Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign

I'm Online Chat Now

Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign

China Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign supplier
Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign supplier Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign supplier Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign supplier Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign supplier Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign supplier

Large Image :  Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign

Product Details:

Place of Origin: China
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-P10-Semi-DIP-1R1G

Payment & Shipping Terms:

Minimum Order Quantity: 6pcs
Packaging Details: 50pcs/curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 10,000pcs/day
Contact Now
Detailed Product Description
Product: P10 1R1G Led Display Panel Usage: Semioutdoor
Module Size: 32*16cm Pixel Resolution: 32*16pixels
Voltage: DC5V Power: 20W
Color: 1R1G Pixels: 10mm
Warranty: 2 Years Paypal: Paypal,Western Uniion
Application: Scrolling Message Text LED Sign

                               Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






P10 RG led module Double Color Semioutdoor waterproof 320*160mm Scrolling Message Text LED Sign

Specification:

Item P10 RG LED module
Pixels Pitch 10mm
Control Mode Synchronous/Asychronous
Cabinet Size 320*160mm
Driver Mode 1/4
Pixel Density 10000 pixels/m2
Refresh Rate ≥60HZ
Color 1R1G
System Operating Platforms WIN98,WINXP,WIN2000…ect
Panel Resolution 32*16
Input Voltage AC200-265V
Resolution 1024 pixels
Data Communication RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION
The Best View Distance 10-100m
The Best View Angle Level:90°-130°; Up:30°-45°; Down:10°-20°
Control System PCTV card+DVI Graphics+ Main Controller+Optical fiber
Brightness ≥2000cd/m2
MTBF ≥1000hours
Lifespan 10,0000H
Max Power Consumption ≤400W/m2
Failed Rate

<0.02%

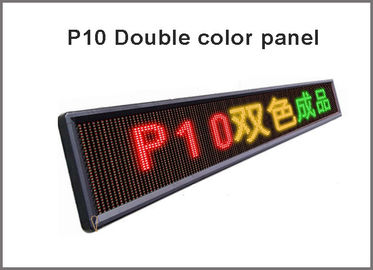

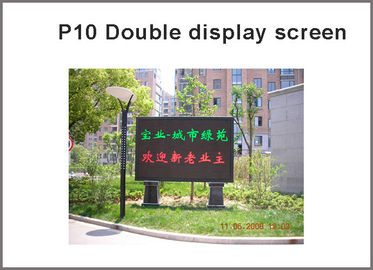

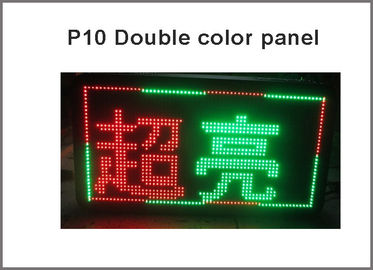

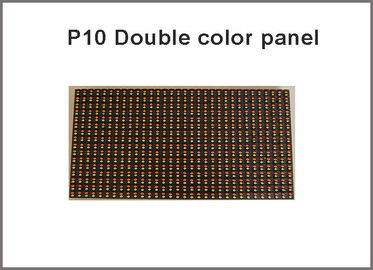

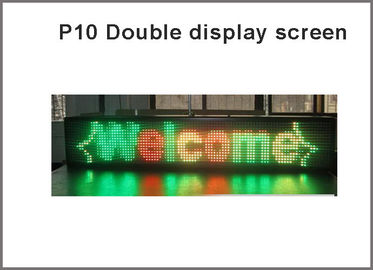

Pictures:

Pls check the pictures below. Red,Green,Bule, Yellow,White pink, doble color 1R1G colors for choose from.





Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign

Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign


Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED SignSemioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED SignSemioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign

Feature:

1) Taiwan Epistar LED chip

2) Fiberglass green enviromental PCB with 18mil  thickness copper plating .

3)  wide view angle (120 degree) with excellent visibility and good performance.

4) quick and easy assembly and disassembly.

5) High brighness (>2000cd/sqm) and refreshrate.

6) Two years warranty.


Applications:

P10 led module semioutdoor is widely used for advertising in front of buidings like shops, supermarket,hotel....ect.
 Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign

Semioutdoor DIP P10 1R1G led display panel Double Color 320*160mm Scrolling Message Text LED Sign
