50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

I'm Online Chat Now

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

China 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier
50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration supplier

Large Image :  50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

Product Details:

Place of Origin: China
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-12mm-5R

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs/string
Packaging Details: 50pcs/string
Delivery Time: 3-5days after payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10,000,000pcs/day
Contact Now
Detailed Product Description
Color: RED Voltage: DC5V
Power: 0.12W Waterproof: IP68
Products Diameter: 12mm Cable Length: 8cm
Product Name: Led Module String Warranty: 3 Years
Paypal: T/T,Paypal,Western Union Application: Christmas Decoration

                                    Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration





Specifications:

Product Name 12mm red led module string
Product Size 12m diameter
Hole size 12mm diameter.
Voltage DC 5V
Power 0.12W
Working Currency 20mA
Bean Angle 180°
Material PVC
IP Rate IP68
Working temperature -45℃~+70℃
Warranty Three Years
Package 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton
Emitting Color  Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor.
Application This red led module string is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.







Pictures:

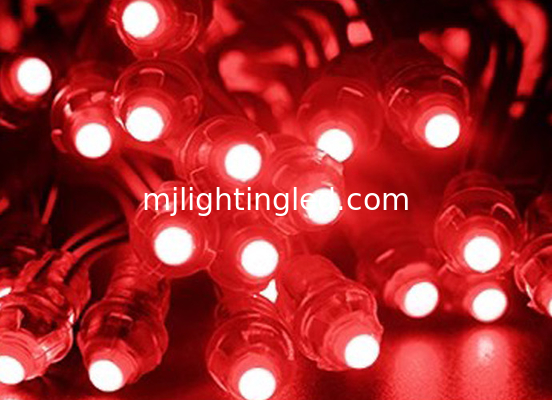

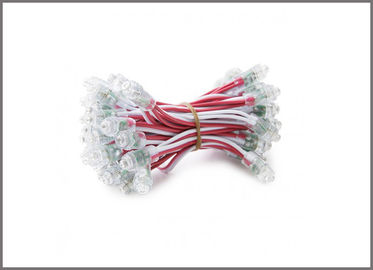

12mm red led modue string

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

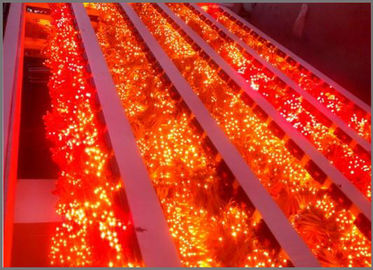

Pixels aging testPixel string lightFlexible pixel tape light



Factory pictures





Feature:



1.Produce with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.



2.Compared with traditional lights, LED light has the advantage of energy saving, environment friendly, long lifespan, Stable well, install conveniently, ect.



3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.



4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.



5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.



6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.







Driver select and installation:



1.Total load power of the driver should not be over than 80% of the driver rated power.

For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over

Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than

160/0.1=1600pcs.



 2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers

Will be burn out.



3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

Notes:

50pcs/string, all the pixels are connected in parallel,When connecting them with wire,pls confirm every
string connect with the main wire,Do not connect all the strings in series. And all the wires connect with pixels and power can be over 5m, and the wire must be must be 2.5 mm2 at least .



50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration



Package:

 50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

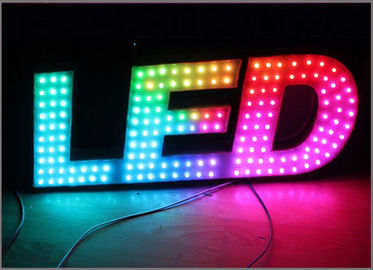

Application pictures:



LED pixel module string are also customized. Pls tell me what you need, and we can design that for you. But make sure , the deliver time maybe longer.

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration

Storage


  • Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.



  • If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.





Full support for all the dealers and agents.
Dongguan MJ photoelectric co.Ltd will give all the dealers and agents domestic & aborad full service and support on market extending and project operation. Service and support as below:



  • To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.



  • Building exhibition hall together with customers and agents.



  • Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.

  • Support customize to help dealers and agents satisfy their customers well.



  • Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.

  • Support professional technical service on pre-sale,in-sale and after-sale.



After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


  • 1year warranty, life-long maintenance. Answer will be replied in 24hours.

  • Technican will solve the problem on site.

  • Give product upgrade solution to improve plane.

  • We will give phone call interviews every month during warranty period

  •

Notice:

1.Pls confirm the dirver is DC5V output.



2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.



3.Pls make sure of the positive and negative of the string, usually the negative is white.



4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.



Common faults and troubleshooting:

1.the whole sting can’t be light up.

 Resolve way:Inspect whether the string and driver main wire polar connected right or not.



2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones



3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.



Other products:

We also provide led modules, led pixel light.... They are mainly used for advertising lightings.

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decorationLED Strip light

50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration


50 pcs/lot DC5V 12mm RED Led Module String Waterproof Digital RED IP68 LED Pixel Light Christmas decoration
