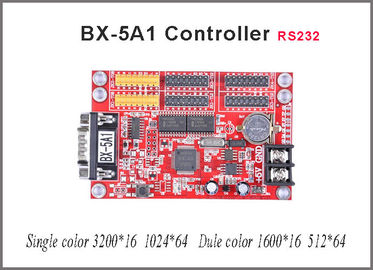

Onban BX-5A1 led control system RS232 serial port 2*HUB08 4*HUB12 display control card for display screen

I'm Online Chat Now

Onban BX-5A1 led control system RS232 serial port 2*HUB08 4*HUB12 display control card for display screen

China Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen supplier
Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen supplier Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen supplier Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen supplier Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen supplier

Large Image :  Onban BX-5A1 led control system RS232 serial port 2*HUB08 4*HUB12 display control card for display screen

Product Details:

Place of Origin: China
Brand Name: BX
Certification: CE ROHS
Model Number: BX-5A1

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Anti-static Package
Delivery Time: 2-5days after getting payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Product: BX-5A1 Led Control System Communication: RS232
Port: 2*hub08,4*hub12 Voltage: DC5V
Single Color Pixel: 3200*16 1024*64 Double Color Pixel: 1600*16 512*64
Software: LedshowTW

                                      Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen

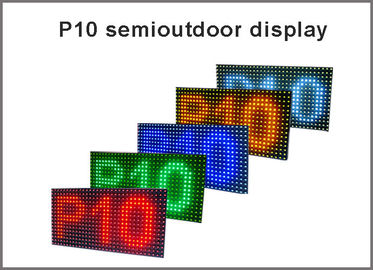

p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






Onban BX-5A1 led control system RS232 serial port 2*HUB08 4*HUB12 display control card for display screen



Specification:

Product BX-5A1 led control system
Control area

Single color 64K: 3200*16  2048*32  1344*48  1024*64

Double color 32K: 1600*16  1024*32  672*48  512*64

Storage capacity 2MByte
Screen types All kinds of small single and double colors LED screen
Software function Screens cluster management/multi-program/multi-areas display/multi-languages
Program quantity Support 64 programs,8areas for each program
Area type

Picture and text/single line text/animation/lunar calendar/digital clock/analogue clock/timer/

temperature/temperature & humidity

Program type Normal/global/real-time/shared/self-adapted program
Frame mode Most advanced colorful and magic graphics frame
Background Not support
Time mode Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode RS232/RS485/GPRS/RF short-range wireless
Interface 2*HUB08,4*HUB12
Sensors supported Tempreature/humidity
Remote control Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation 16 grades brightness, manual and auto-timing adjustment
Power on/off mode Auto-timing powered on/off /software power on & off/remote power on&off
Voltage 5V(3.5V~6.5V )
Maximum power <1W
Temperature -40°C~80°C
Secondary devel Provide the DLL and corresponding demos
Software LedshowTW
User manual LedshowTW software user manual
Adapter HUB128-T12 HUB128-T8 HUB256-T12 HUB256-T8
Application Control system for led display screen



Pictures:

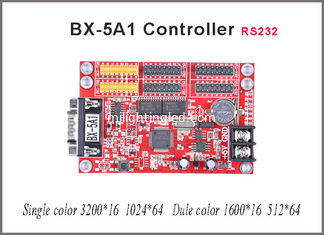

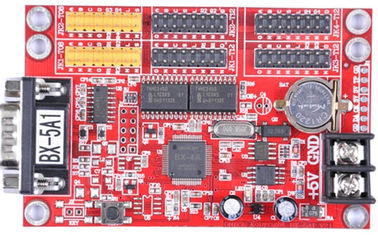

BX-5A1 led control system



HUB port introducton:

Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen



PIN50 introducton:

Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen



Signal Pin Number Introduction
A 42 lowest number in row address
B 41 Secondary low number in row address
C 40 Secondary high number in row address
D 39 Highest number in row address
RCLK 43 latch lock in the row
CLK 44 shift clock
OE 45 Display available
RD

8,10,12,14,16,18,20,22,24

26,28,30,32,34,36,38

Red data
GD

7,9,11,13,15,17,19,21,23

25,27,29,31,33,35,37

Green Data
VCC 2,4,47,49 +5 output
GND 1,3,5,46,48,50 Earth
NC 6 leave it alone






Other products:

We also provide led modules, led pixel light.... They are mainly used for advertising lightings.

Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screenOnban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screenOnban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screenLED Strip light

Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screenOnban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screenOnban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screenOnban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen


Onban BX-5A1 led control system RS232 serial port 2*HUB08  4*HUB12 display control card for display screen
