Product Details:
Payment & Shipping Terms:
|
| Color: | White | Voltage: | DC5V |
|---|---|---|---|
| Power: | 0.12W | Waterproof: | IP68 |
| Products Diameter: | 9mm | Cable Length: | 8cm |
| Usage: | Advertising Signage | Warranty: | 3 Years |
| Paypal: | T/T,Paypal,Western Union |
Specifications:
| Product Name | 9mm led pixel string light |
| Product Size | 9mm diameter |
| Hole size | 9mm diameter. |
| Voltage | DC 5V |
| Power | 0.12W |
| Working Currency | 20mA |
| Bean Angle | 180° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
| Application | This led pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |

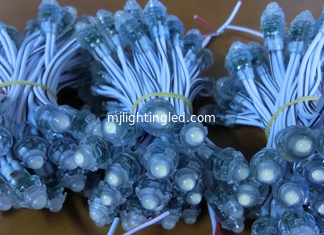

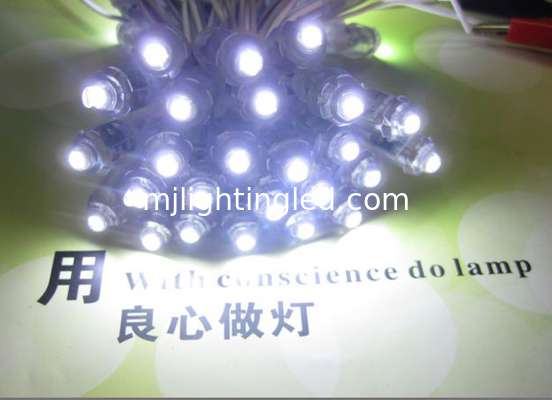

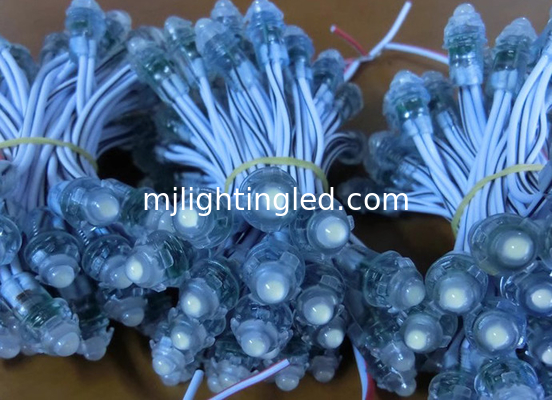

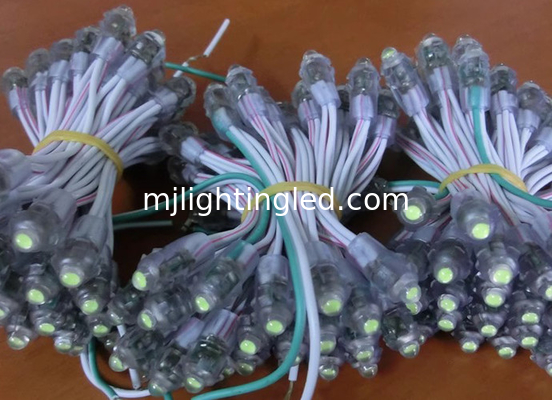

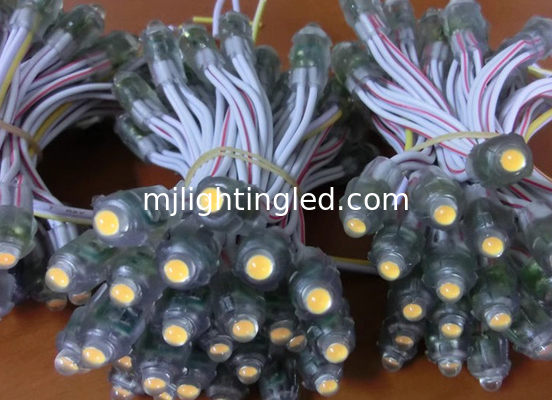

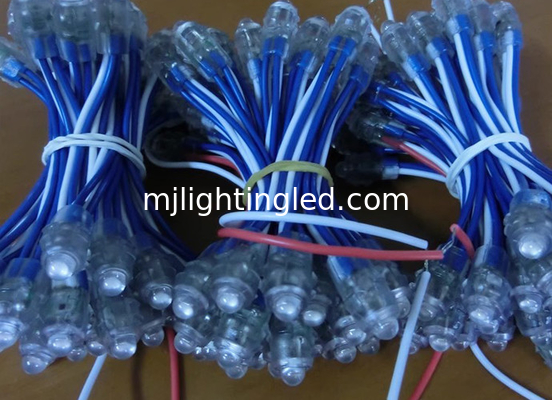

Pictures:
Package:

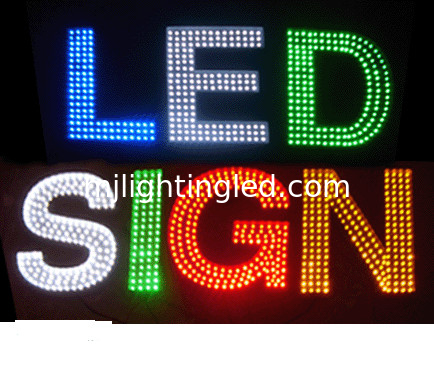

Application pictures:
Notice:
1.Pls confirm the dirver is DC5V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
