DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters

Good quality 30 mm LED Pixel for sales
Good quality 30 mm LED Pixel for sales
I'm Online Chat Now

DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters

China DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters supplier
DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters supplier DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters supplier DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters supplier DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters supplier DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters supplier

Large Image :  DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters

Product Details:

Place of Origin: China(mainland)
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-5050-R-outdoor

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: 5000pcs/curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Detailed Product Description
Products: DC12V Led Backlight Modules Power: 0.72W
Voltage: DC12V LED: 5050 Led
Color: Red IP Rate: IP67
Application: Led Sign Size: 75*12*05 Mm





DC12V LED backlight modules 5050 waterproof red light for led channel letters



Model No. MJ-5050-R-outdoor
Light sources 5050 SMD 3led
Chip material AlGaInP
Input voltage DC 12V
Lumen 42-50LM
Power 0.72w
IP rank IP67
Certification CE,RoHS
Dimension 75*12mm
Lifespan 50000 hours
Color Warm white/cool white/red/green/bule/yellow/RGB available
Angle Beam 120dg
Operating temperature —40-60℃
Color temperature 2700-20000K
Optical attenuation 1000H≥5%
Color rendering index 70Ra
Warranty 2 yea







Installation Tip:

—Silicon glue or 3M double tape directly fixing modules.Pls Cleaning or polishing module surface before the installation.

—Can use screw mounting the modules on the board.



—Single led module can be cut off.

DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters

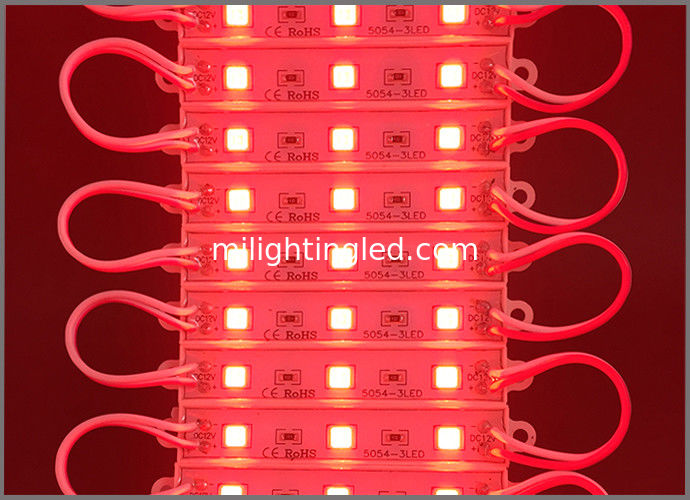

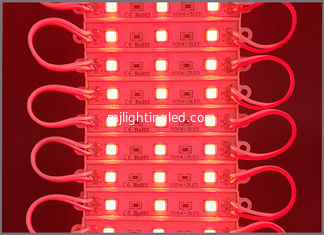

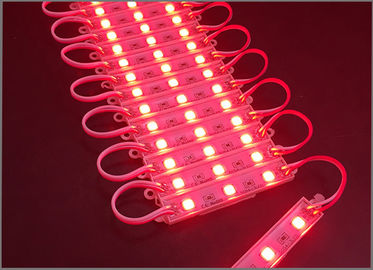

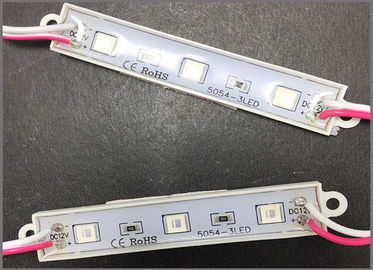

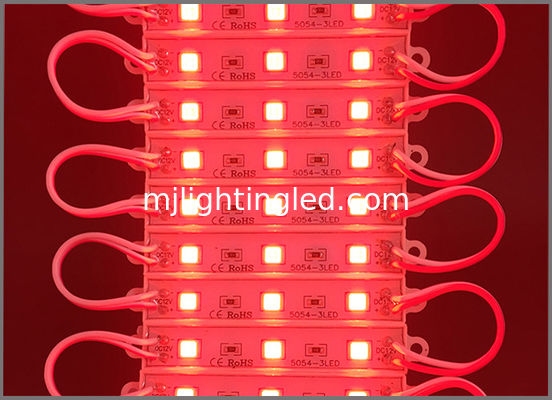

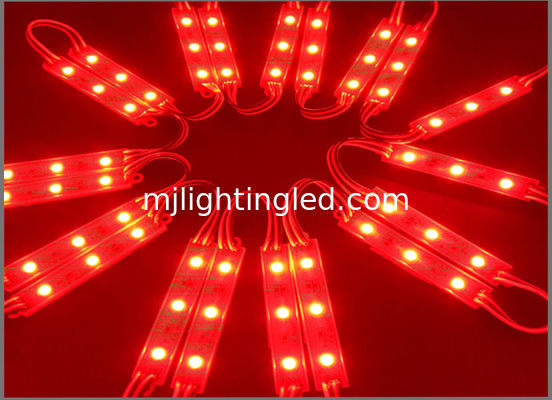

Pictures:



LED BacklightLED Back light

DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters

After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.


  • 1year warranty, life-long maintenance. Answer will be replied in 24hours.

  • Technican will solve the problem on site.

  • Give product upgrade solution to improve plane.

  • We will give phone call interviews every month during warranty period



Package:

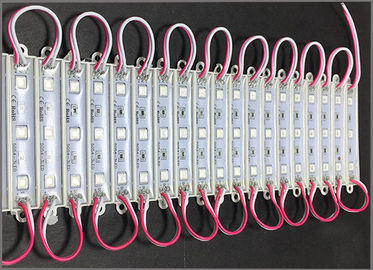

20pcs/string, 5000pcs/curton.  Packing picture as below:

DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters





Application:



LED channel letters

Name board

Wine bar wall decoration

building and stage decoration.

Shop advertising



DC12V LED Backlight Modules 5050 Waterproof Red Light For Led Channel Letters
