|Size:||70*15mm||Color:||Red Green Blue Yellow White Pink|
|Products:||1.5W Injection SMD Led Module||Voltage:||DC12V|

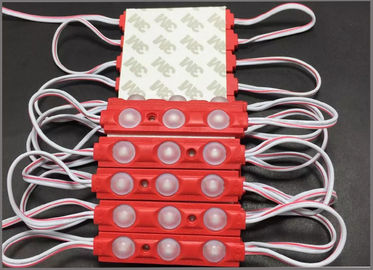

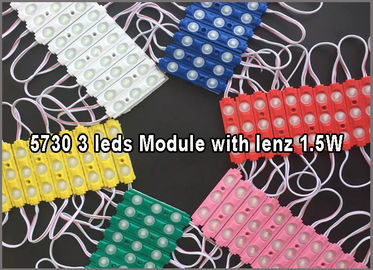

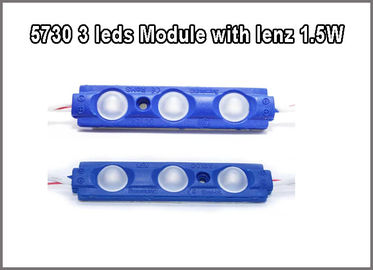

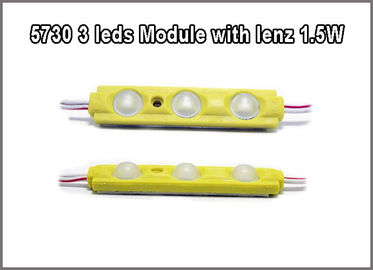

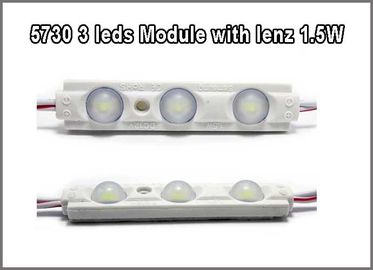

5730 1.5W Injection SMD Led Module with 160degree lenz for Light Box
|Product Name||1.5W injection SMD LED Module|
Red green blue yellow white pink
|Package||20pcs/string, 100pcs/pcakge, 1000pcs/cuton|
|Emitting Color||Red, Yellow,Blue,Green,White,Pink|
|Application||This 1.5W injection SMD LED Module is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.|
1.High quality import chip,Top-encapsulation ,high brightness,small lighting failure.
2.High light effective; No light decay after working 1000Hrs;
3.Better heat dissipation,low-power,long-life,maintenance-free;
4.Waterproof with ABS housing & Epoxy sealed;
The product uses high quality LED light source,good luminous effect, Shell material made of imported PC material, fireproof, anti-UV, no easy become yellowing and other excellent performance.Wide range of application scenarios,Science and technology exhibition, lighting art,it can control by music and art with 3D effects,Stage stereo lighting,SD card controller playback and other effects.

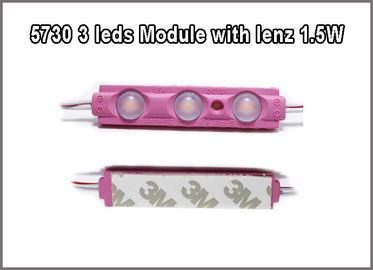

—Silicon glue or 3M double tape directly fixing modules, but before installation.
Cleaning or polishing module surface.
—Can use screw mounting the modules on the board.
—Single led module can be cut.
LED modules is widely used for lighting letters, lighting signboard, billboard,led channel letters, decoration, rgb pxiels display, decoration,building decorating...ect
Other products. (pls click the picture to open the details page of the products)
1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
