Product Details:
Payment & Shipping Terms:
|
Color: | 9mm LED Pixel Light 5V/12V Dot Light Red Green Blue Yellow White Pink Purple Orange | Voltage: | DC5V/DC12V |
---|---|---|---|
Power: | 0.12W | Waterproof: | IP68 |
Products Diameter: | 9mm | Cable Length: | 8cm |
Usage: | Advertising Lighting Letters | Warranty: | 3 Years |
Paypal: | T/T,Paypal,Western Union | Application: | String Light 5V/12V |
Product: | LED Pixel Module Light |
9mm LED pixel light 5V/12V dot light Red Green Blue Yellow White Pink Purple Orange advertising lighting letters
Specifications:
Product Name | 9mm LED Pixel light |
Product Size | 9m diameter |
Hole size | 9mm diameter. |
Voltage | DC 5V/12V |
Power | 0.12W |
Working Currency | 20mA |
Bean Angle | 180° |
Material | PVC |
IP Rate | IP68 |
Working temperature | -45℃~+70℃ |
Warranty | Three Years |
Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
Emitting Color | Red, Yellow,Blue,Green,White,Voilet,Orange, RGB,Fullcolor. |
Application | LED Pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |

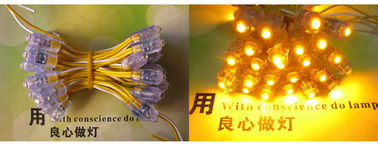

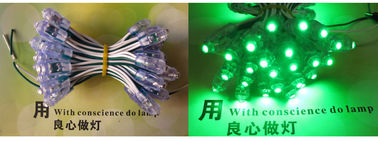

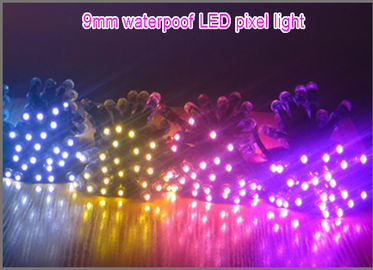

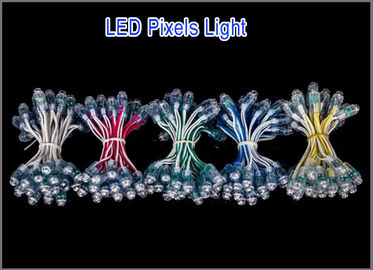

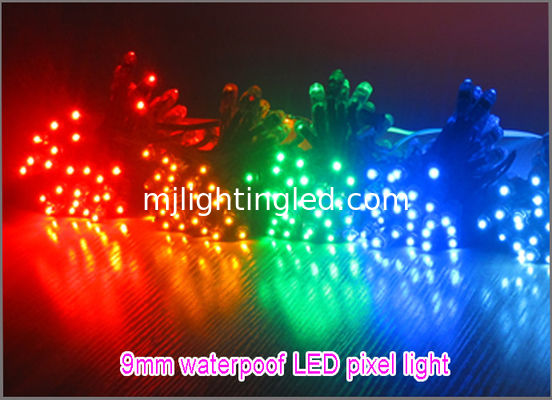

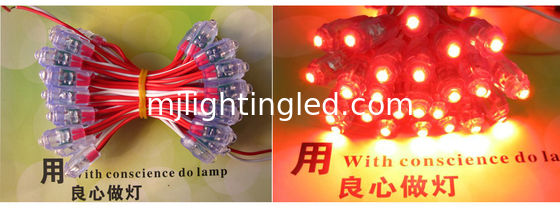

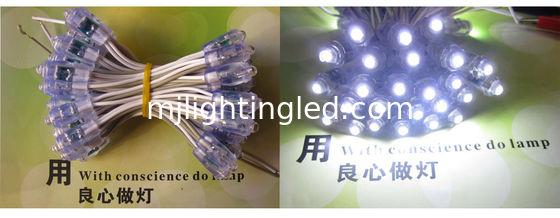

Pictures:
pixel lighting, 5V and 12V all are available. 12V will be more brighter. If you need , Pls tell us which voltage you need. and which color you want.
5V and 12V both available.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers
Will be burn out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .
Pls check the picture as below:
Notes:
50pcs/string, all the pixels are connected in parallel,When connecting them with wire,pls confirm every
string connect with the main wire,Do not connect all the strings in series. And all the wires connect with pixels and power can be over 5m, and the wire must be must be 2.5 mm2 at least .
Package:
50pcs/string, 1000pcs/bag, 5000pcs/curton.

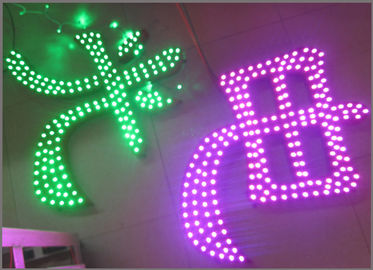

Application pictures:
LED pixel light are also customized. Pls tell me what you need, and we can design that for you. But make sure , the deliver time maybe longer.
