Product Details:
Payment & Shipping Terms:
|
| Product: | Full Color Led Pixel Light | IC: | 1903IC |
|---|---|---|---|
| Item: | Pixel Light | Controller: | T-1000S |
| Software: | LEDedit | Programmable: | Yes |
| Diamter: | 12MM | Voltage: | 5V |
| Waterproof: | Yes | Usage: | Christmas Decoration |
| Warranty: | 3 Years |
5V 12mm full color led pixel light decoration light 1903IC Christmas decor
Specification
| Product Name | 12mm full colr led pixel light |
| Product Size | 12m diameter |
| IC mode | 1903/6803/WS2801/WS2802 (pls tell us which IC you need before place order) |
| Voltage | DC 5V |
| Power | 0.3W |
| Working Currency | 20mA |
| Bean Angle | 160° |
| Material | expoxy |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Fullcolor with IC |
| Application | Fullcolor led pixel light is used for colorchaning led signs. advertising letters,Name board, Wire bar,wall,building and stage decoration. |
Pictures

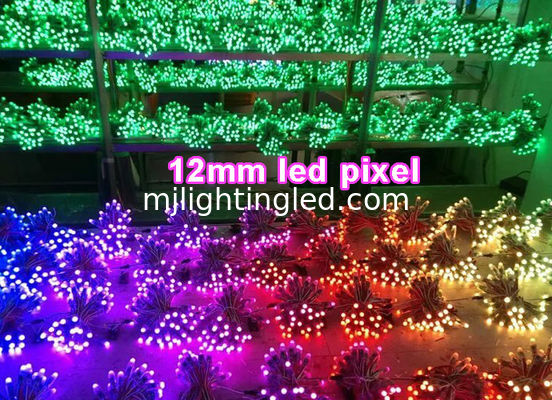

Pls check picture of fullcolor led pixel with 1903IC:
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers
Will be burn out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .
Pls check the picture as below:
Package
Application
RGB Fullcolor led pixel 1903IC Flexible string lights are widely used for color changing led signs. lighting letters, led channel letters, decoration, rgb pxiels display, decoration,
building decorating...ect
software : lededit 2013.
Notice:
1.Pls confirm the dirver is DC5V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
Common faults and troubleshooting:
1.the whole sting can’t be light up.
Resolve way:Inspect whether the string and driver main wire polar connected right or not.
2.One pcs light can’t be light up or not bright enough.
Resolve way:The light is break ,and exchange it with the good ones
3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.
Resolve way:Exchange the main wire to 2.5mm2 wire.
