5050 SMD Module 6chip modules led letter backlight

China 5050 SMD Module 6chip modules led letter backlight supplier
5050 SMD Module 6chip modules led letter backlight supplier 5050 SMD Module 6chip modules led letter backlight supplier 5050 SMD Module 6chip modules led letter backlight supplier

Large Image :  5050 SMD Module 6chip modules led letter backlight

Product Details:

Place of Origin: China
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-6x5050-W-outdoor

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Packaging Details: 5000pcs/Curton
Delivery Time: 3-5days after payment
Payment Terms: Paypal, T/T, Western Union
Supply Ability: 1000,000pcs/day
Contact Now
Detailed Product Description
Color: White LED: 5050
Voltage: DC12V Power: 0.8W/pc
Size: 75*12*05 Mm Waterproof: IP67
Warranty: 3 Years Payment: T/T, Paypal, Western Union
Product: 5050 SMD Module 6chip Application: Led Letter Backlight

                                        Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led 5050 SMD Module 6chip modules led letter backlight
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller



5050 SMD Module 6chip modules led letter backlight

Product Name 5050 SMD Module 6 chip
Voltage DC12V
Power 0.8W/pc
Working Currency 20mA
Bean Angle 180°
IP Rate IP67
Working temperature -45℃~+70℃
Warranty 3 Years
Package 20pcs/roll
Emitting Color White
Application 5050  leds modules is widely used for all kinds of advertisment lighting,advertising letters,Name board, Wire bar,wall,building ,led sign backlight,advertising light box and stage decoration.

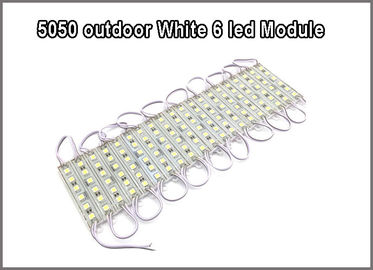

Pictures:SMD5050 modules led

5050 6 LED module
LED module 5050 6led
 5050 SMD Module 6chip modules led letter backlight5050 SMD Module 6chip modules led letter backlight
1.Produced with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.
2.Compared with traditional lights, LED light has the advantage of energy saving, environmental friendly, long lifespan, Stable well, install conveniently, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchange the break one. Much different from the kind that need to exchange the whole roll string if there is only 1 pcs gone down.
6.Flexible enough for installation, high strength, High temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP67.
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.8W, Then the quantity should not be over than
 2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

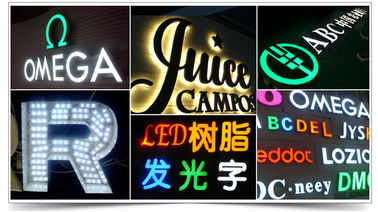

Application pictures:
LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
5050 SMD Module 6chip modules led letter backlight5050 SMD Module 6chip modules led letter backlight


  • Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.


  • If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.



Full support for all the dealers and agents.
Dongguan MJ photoelectric co.Ltd will give all the dealers and agents domestic & aborad full service and support on market extending and project operation. Service and support as below:


  • To help to dominate the market, We will devolop the strategy together with our customers and agents to make sure maket,sales,design,produce are finished well.


  • Building exhibition hall together with customers and agents.


  • Make warehouse of spare parts with customers and agents to confirm the service gave fastly and effectively.

  • Support customize to help dealers and agents satisfy their customers well.


  • Regular training; improve the market developping and after-sales files to help customers and agents manage systematically.

  • Support professional technical service on pre-sale,in-sale and after-sale.


After-sales Service:

Our professional after-sales technical service team and good after-sales service net all around the country make sure customers no troubles at all on after-sales service.

  • 1year warranty, life-long maintenance. Answer will be replied in 24hours.

  • Technican will solve the problem on site.

  • Give product upgrade solution to improve plane.

  • We will give phone call interviews every month during warranty period

1.Pls confirm the dirver is DC12V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.



If you have more questions, Pls contact with me:
