Payment & Shipping Terms:
|Product:||ZH-W0 Wifi Led Control Card||Voltage:||DC5V|
|Communication:||Wifi & USB||Pixel:||32*1024,16*2048|
|Port:||2xhub12, 1xhub08||Application:||P10 Led Panel Controller|
Main products Hot seller

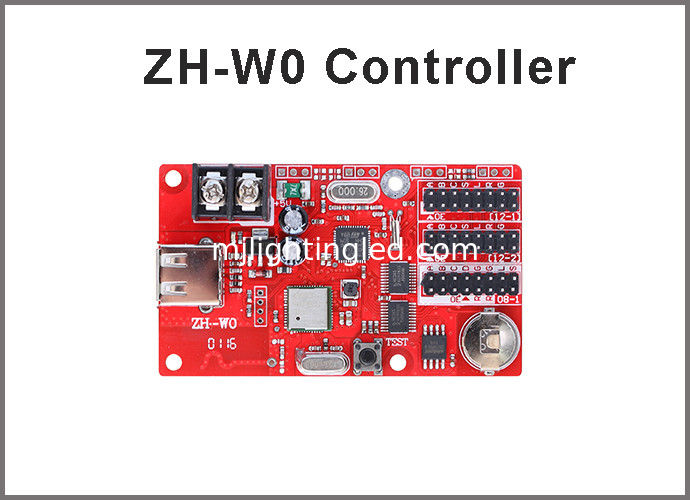

ZH-W0 wifi led control System 32*1024,16*2048 pixels
Short distance wireless wifi control system: no wire connection, internal wireless routing function. Support
ipad,iphone,android phone, pad,PC and laptop. software on PC switch Wifi network intelligently. So it can replace USB fully.
|Mode||ZH-W0 wifi led control card|
|Working Temperature||-30~70 degree|
|Receiving sensitivity||<( 802.11b:-89dBm, 802.11g:-81dBm, 802.11n:-71dBm)|
|Transmission Distance(Max)||<200m ( suggest <100m)|
|Antenna||2.4GHZ Special antenna|
1.No wire connection . 2. Easy to use. 3. No more cost. 4. Point to point communication. 5. Searching for wifi
automatically and connect it realiablly.
Other Wifi controller card:
|Product Mode||Pixels Range||Port|
led Control System is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.
Display worked with display card:
1. Short distance below 100m, Laptop can communication directly. PC can communicate by wireless network adapter and wifi controller.
2.Laptop can communication directly because the card comes with
3.It is widely used everywhere there is good wireless wire signal . Such as: airport, station and so on.
4. If it is used for outdoor display screen, Pls make sure to protect it from water and rainly.
5. Pls make sure the antenna installed at the right place. ZH-W0 controller antenna should be
installed outside of the display screen.
We also provide led modules, led pixel light.... They are mainly used for advertising lightings.
