| Color: | RGB | LED: | 5050SMD LED |
|---|---|---|---|
| Voltage: | DC12V | Power: | 0.8W/pc |
| Size: | 75*12*05 Mm | Waterproof: | IP68 |
| Warranty: | 3 Years | Payment: | T/T, Paypal, Western Union |
| Products: | Rgb Led Light | Application: | Outdoor Signs |
RGB Module light 5050 led for color changing lighting letters
Specifications:
| Product Name | RGB LED light |
| Product Size | 75*12*05 mm |
| Voltage | DC12V |
| Power | 0.8W/pc |
| Working Currency | 20mA |
| Bean Angle | 180° |
| IP Rate | IP67 |
| Working temperature | -45℃～+70℃ |
| Warranty | 3 Years |
| Package | 20pcs/roll |
| Emitting Color | RGB |
| Application | RGB LED 5050 module is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |

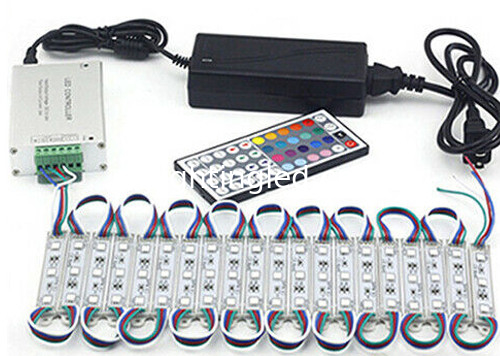

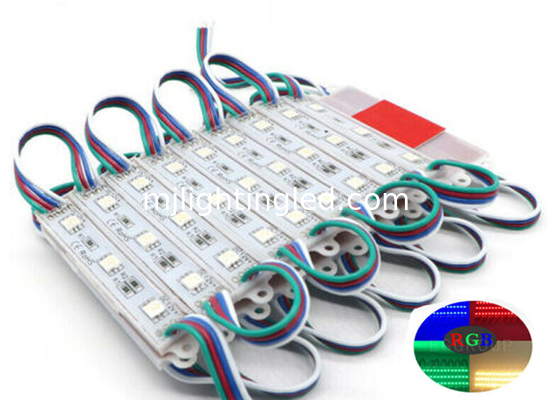

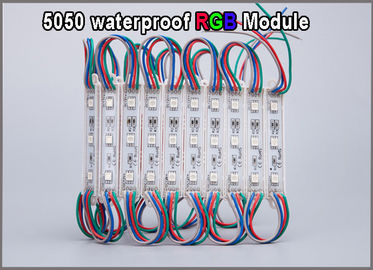

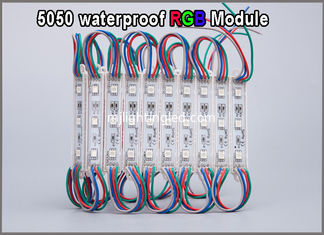

Pictures:
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no return circuit.Otherwise the drivers will be burned out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end connected with the main wire . and main wire must be 2.5 mm2 .

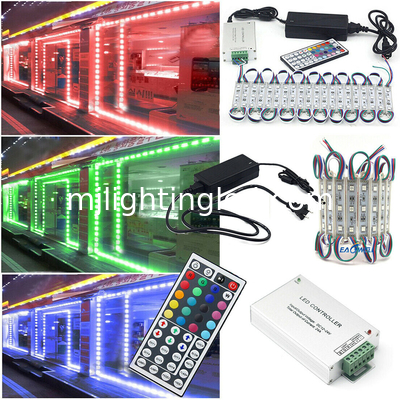

Application pictures:
RGB LED module is widely used for all kinds of LED channel letters,Name board, Wire bar,wall,building and stage decoration.
