Outdoor Led Module P10 Outdoor Led Display Module 320*160mm P10 Led Module Red Green Blue Yellow White

Outdoor led module p10 outdoor led display module 320*160mm p10 led module red green blue yellow white

Why choose from us ?

• Triple protection design: waterproof, dustproof, anti-salt spray for outdoor use
• Custom high-reliability connectors after 100h aging test
• Strict full lighting test before delivery
• Custom service & complete technical support

Specification

• Products Name: P10 outdoor led display module
• Pixel Pitch: 10mm
• Control Mode: Asynchnronous/Synchnronous
• Module size: 320*160mm
• Pixel resolution: 32*16 pixels
• Drive Mode: 1/4 Scan
• Voltage: DC5V
• Brightness: >2000cd/m2
• Lifespan: 10,0000hrs

Features:

1. Taiwan Epistar LED chip
2. Fiberglass green enviromental PCB with 18mil thickness copper plating .

3. wide view angle (120 degree) with excellent visibility and good performance.

4. quick and easy assembly and disassembly.

5. High brighness (>2000cd/sqm) and refreshrate.

6. Two years warranty.

Products Pictures:

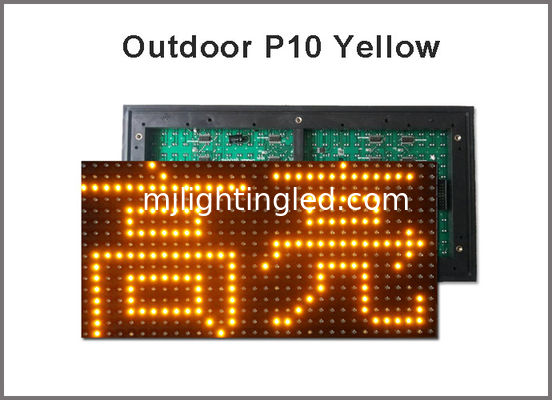

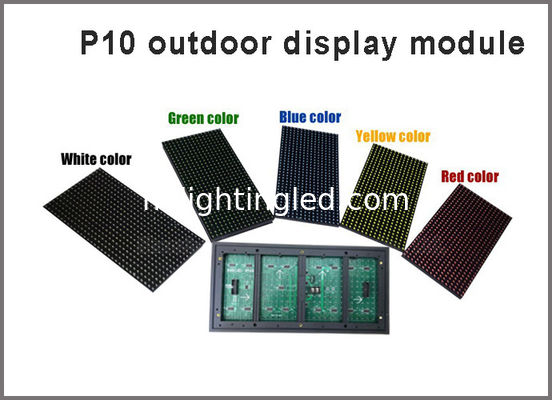

P10 outdoor led display modules pictures red green Blue Yellow White

Applications:

1. Commercial shopping malls

2. Building exterior wall advertising

3. City cultural squares

4. Street roadside billboards

5. Hotel lobby & conference room

6. Airport, railway station & subway

7. Supermarket & retail store

8. Stadium & gymnasium

FAQ

Q1: What is this LED diplay module used for?

A: It is outdoor full color LED display module, widely used for building exterior screen, square billboard, roadside upright advertising and other outdoor commercial display projects.

Q2: Is this LED module waterproof?

A: The lamp face is filled with double-component waterproof glue, and IC side is sprayed with three-proof silicone. It reaches IP65 for front side, suitable for outdoor use. But connectors need extra waterproof sealing.

Q3: What does lamp-driver integrated PCB mean?

A: LED beads are on the front of PCB, and the driver IC chips are mounted on the back. This design makes the module thinner and easier for splicing.

Q4: Will there be mosaic or grid effect after splicing?

A: Our self-developed mask has good flatness. With correct installation, it can hide splicing seams perfectly without grid or mosaic phenomenon.
