Product Details:
Payment & Shipping Terms:
|
| Color: | Yellow | Voltage: | DC5V/DC12V |
|---|---|---|---|
| Power: | 0.12W | Waterproof: | IP68 |
| Products Diameter: | 9mm | Cable Length: | 8cm |
| Usage: | 9mm Green Pixel Module | Warranty: | 3 Years |
| Paypal: | T/T,Paypal,Western Union | Application: | Lights For Advertisement |
9mm Green Pixel Module DC5V IP68 Waterproof Point Lights For Advertisement 50pcs/ lot
Specifications:
| Product Name | 9mm pixel module |
| Product Size | 9m diameter |
| Hole size | 9mm diameter. |
| Voltage | DC 5V/12V |
| Power | 0.12W |
| Working Currency | 20mA |
| Bean Angle | 180° |
| Material | PVC |
| IP Rate | IP68 |
| Working temperature | -45℃～+70℃ |
| Warranty | Three Years |
| Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
| Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
| Application | pixels modules light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |

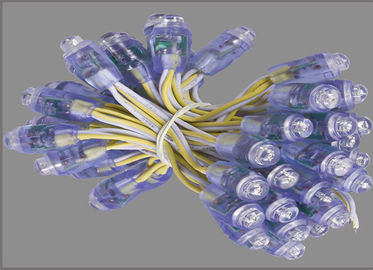

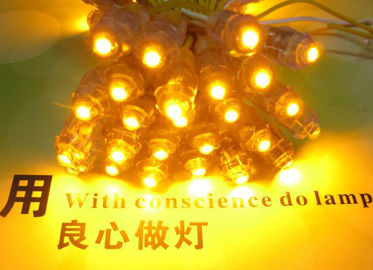

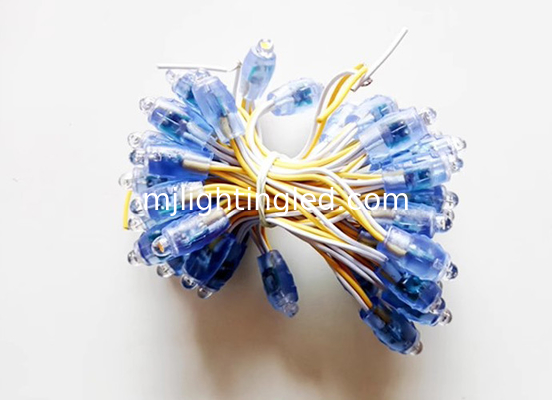

Pictures:
Pixels modules light, 5V and 12V all are available. 12V will be more brighter. If you need , Pls tell us which voltage you need. and which color you want.
Feature:
1.Produce with Taiwan chip. high lumen, good color purity, lower light dissipation and long lifespan.
2.Compared with traditional lights, LED light has the advantage of energy saving, environment friendly, long lifespan, Stable well, install conveniently, ect.
3.Monocolour achieve the effect of advertising signs keeping lighting state, fullcolor string suitable for advertising sign whose color is changed always, It makes outdoor advertising signs board produced easily and beautiful appearance.
4.Suitable for different material board like Aluminum substrate , stainless steel plate,ect. install conveniently.
5.Every piece is connected with series method, If one is down, Just need to exchang the break one. Much different from the kind that need to exchanged the whole roll sting if there is only 1 pcs gone down.
6.flexiable enough for installation, high strength, High and low temperature resistance,anti ultraviolet, aging-resistant, Waterproof IP68.
Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .
Pls check the picture as below:
Notes:
50pcs/string, all the pixels are connected in parallel,When connecting them with wire,pls confirm every
string connect with the main wire,Do not connect all the strings in series. And all the wires connect with pixels and power can be over 5m, and the wire must be must be 2.5 mm2 at least .
Package:
50pcs/string, 1000pcs/bag, 5000pcs/curton.

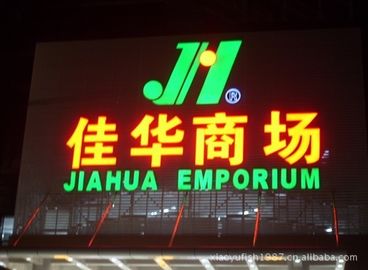

Application pictures:
LED pixel light are also customized. Pls tell me what you need, and we can design that for you. But make sure , the deliver time maybe longer.
Products packaged well should be storaged in dry environment and lower than 60%RH humidity. When it is rainly, pls keep the warehouse dry.
If packed goods are kept over than 1 month, it is suggested to take out to do aging test for 2 hours and then pack up again.
