Product: BX-5A4 Led Sign Controller Communication: RS232
Port: 1xpin50 Voltage: DC5V
Single Color Pixel: 3200*32 512*256 Double Color Pixel: 3200*16 256*256
Software: LedshowTW

                                         Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led Asynchronous RS232 BX-5A4 led sign controller for single/dual color Lintel LED message text display
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller






Asynchronous RS232 BX-5A4 led sign controller for single/dual color Lintel LED message text display



Specification:

Product BX-5A4 led sign controller
Control area

Single color 128K:3200*16 3200*32 2720*48 2048*64 1632*80 1344*96 1152*112 1024*128  896*144 800*160 736*176 672*192 608*208 576*224 544*240 512*256

Double color 64K: 3200*16 2048*32 1360*48 1024*64 816*80 672*96 576*112 512*128   448*144 400*160 368*176 336*192 304*208 288*224 272*240 256*256

Storage capacity 2MByte
Screen types All kinds of small single and double colors LED screen
Software function Screens cluster management/multi-program/multi-areas display/multi-languages
Program quantity Support 128 programs,24areas for each program
Area type

Picture and text/single line text/animation/lunar calendar/digital clock/analogue clock/timer/

temperature/temperature & humidity

Program type Normal/global/real-time/shared/self-adapted program
Frame mode Most advanced colorful and magic graphics frame
Background support
Time mode Analogue clock/digital clock/timing and counting-down timer (support multi-groups)
Communication mode RS232/RS485/GPRS/RF short-range wireless
Interface 1*PIN50
Sensors supported Tempreature/humidity
Remote control Remote control program/lock screen/brightness adjustment/power on/off /screen test
Bright regulation 16 grades brightness, manual and auto-timing adjustment
Power on/off mode Auto-timing powered on/off /software power on & off/remote power on&off
Voltage 5V(3.5V~6.5V )
Maximum power <1.5W
Temperature -40°C~80°C
Secondary devel Provide the DLL and corresponding demos
Software LedshowTW
User manual LedshowTW software user manual
Adapter HUB128-T12 HUB128-T8 HUB256-T12 HUB256-T8
Application Control system for led display screen



Pictures:

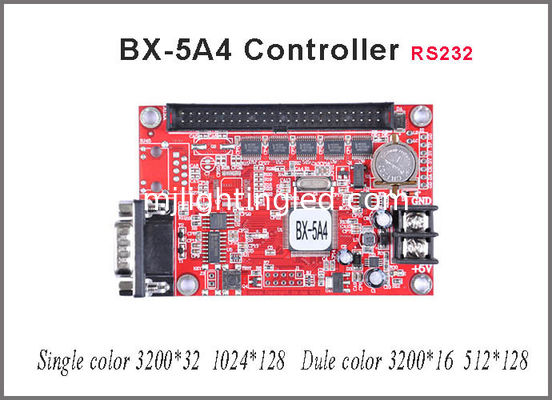

BX-5A4



HUB port introducton:

Asynchronous RS232 BX-5A4 led sign controller for single/dual color Lintel LED message text display



PIN50 introducton:

Asynchronous RS232 BX-5A4 led sign controller for single/dual color Lintel LED message text display



Signal Pin Number Introduction
A 42 lowest number in row address
B 41 Secondary low number in row address
C 40 Secondary high number in row address
D 39 Highest number in row address
RCLK 43 latch lock in the row
CLK 44 shift clock
OE 45 Display available
RD

8,10,12,14,16,18,20,22,24

26,28,30,32,34,36,38

Red data
GD

7,9,11,13,15,17,19,21,23

25,27,29,31,33,35,37

Green Data
VCC 2,4,47,49 +5 output
GND 1,3,5,46,48,50 Earth
NC 6 leave it alone
