Detailed Product Description

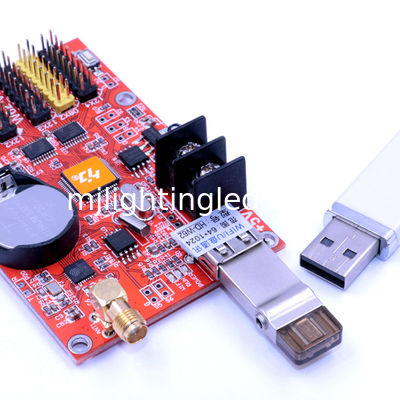

Product: HD-W62 Communication: USB+wifi
Pixels: 1024*64 (single Color) Voltage: DC5V
Port: 2HUB08,4HUB12 Application: P10 LED Display Module Control Card

                                 Main products Hot seller

RGB LED module 5050 modules 5054 3led modules 5730 pixel modules
RGB Pixel light Fullcolor led pixel light 9mm 5V pixel led HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system
p10 led module RGB Display module RGB Display module P10 message board
HD-D10 controller card ZH-Um controller LED controller card LED Controllers
LED Drivers RGB LED Controllers LED Power supply DMX512 led Controller




HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system



Specification:

Mode HD-W62 USB+Wifi P10 LED display module control card
Control color Single color/Double color/RGB
Pixels

1024W*64H   2048W*32H (single color);

512W*64H   2048W*16H(Double color);

672W*32H       1024W*16H (RGB)

Scan mode Static, 1/2,1/3,1/4,1/5,1/6,1/8,1/16 ect.
Communication USB+WIFI
Voltage 5V (4.2~5.5V)
Power <0.5W
Working temperature -40~75 degree
Size 55H*85W
Flash Capacity 2MB (Can extend to 8MB)
Display color Double color support Red Green and Yellow.
RGB RGB Color can show Red Green Blue Yellow Purple,Syan and White(7 colors)
Program Qty. 200 programs, support button and remote control
Area Qty. 8 areas,separated areas, separated patterns and separated border
Display showing Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature,  etc
Program mode Playing by Sequence or by Button
Display effects

1.Support all languages(Software:HD2014)

2. Border functions of Program border, area border and Custom design border.

3.Add Countdown /Count up, Button Countdown / Count up

4.Add Text Rotation of 90°,180°,270° for display Text function of Hollow,Stroke etc

5.Updated program by U-disk

6. More than 40 types showing effects

7.More high brightness, more moving speed ,more refresh

8.Support add Excel directly.

Time / Clock /Count Function

1. Used in Parking place,Scoring device,Calculate by piece.

2. From Minimum to Maximum, from Maximum to Minimum

Expand function temperature,humidity,brightness etc sensor
Brightness Control Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation
Automatic close /open display Support close /open display by time automatically
Application This control card is widely used for all the billboard,shops,vehicle message showing.
Advantage USB and wifi communication do not need wire, low cost ,cost-effective. easy software operation,good showing effect and support 98% of all the single and double display screens.



Pictures:

HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control systemHD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control systemHD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control systemHD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control systemHD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control systemHD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system





Dimension pictures:



HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system

HUB port introducton:

HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system

PIN50 introducton:

HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system



Signal Pin Number Introduction
A 42 lowest number in row address
B 41 Secondary low number in row address
C 40 Secondary high number in row address
D 39 Highest number in row address
RCLK 43 latch lock in the row
CLK 44 shift clock
OE 45 Display available
RD

8,10,12,14,16,18,20,22,24

26,28,30,32,34,36,38

Red data
GD

7,9,11,13,15,17,19,21,23

25,27,29,31,33,35,37

Green Data
VCC 2,4,47,49 +5V output
GND 1,3,5,46,48,50 Earth
NC 6 leave it alone




Control System:



led Control System HD2014 is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.



HD-W40 HD-W62 USB+Wifi P10 LED display module control card, Single&Dual Color led control system



Other Huidu Control card for single/double color:


Communication Mode Pixels (Max) Pixels(W) Pixel(H) Port
USB HD-U6A 320*32 320 32 2 HUB12
USB HD-U6B 1024*48 1024 48 3HUB12
USB HD-U60 512*32 1024 32 1HUB08,2HUB12
USB HD-U61 1024*32 1024 32 1HUB08,2HUB12
USB HD-U62 512*64 1536 64 2HUB08,4HUB12
USB HD-U63 512*128 2048 128 4HUB08,8HUB1
USB HD-U64 512*256 3072 256 1 PIN50
RS232 HD-S61 1024*32 1024 32 1HUB08,2HUB12
RS232 HD-S62 1024*64 1536 64 2HUB08,4HUB12
RS232 HD-S63 1024*128 2048 128 4HUB08,8HUB12
RS232 HD-S64 1024*256 4096 256 1 PIN50
RS232 HD-S65 1024*512 4096 512 2 PIN50
Network HD-E61 1024*32 1024 32 1HUB08,2HUB12
Network HD-E62 1024*64 2048 64 2HUB08,4HUB12
Network HD-E63 1024*128 3072 128 4HUB08,8HUB12
Network HD-E64 1024*256 4096 256 1 PIN50
Network HD-E65 1024*512 4096 512 2 PIN50
Network HD-E66 2048*512 8192 512 2 PIN50
Wifi HD-W61 1024*32 1024 32 1HUB08,2HUB12
Wifi HD-W62 1024*64 2048 64 2HUB08,4HUB12
Wifi HD-W63 1024*128 3072 128 4HUB08,8HUB12
Wifi HD-W64 1024*256 4096 256 1 PIN50




If you have more questions, Pls contact with me:
Contact : Alice Wang
Email:ledsignage_alice@163.com
Skype:alicewang2027
Whatapp:008613534016771
Website:http://www.mjlightingled.com
