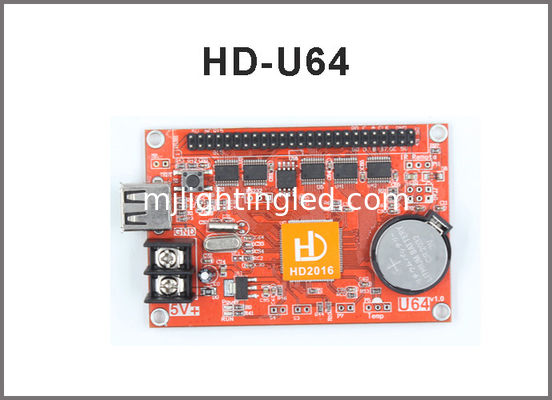

| Product: | HD-U64 | Communication: | USB |
|---|---|---|---|
| Pixels: | 512*256 (single Color) | Voltage: | DC5V |
| Port: | 1 PIN50 | Application: | Control System For Led Advertising |
Main products Hot seller
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Led animation control card HD-U64 HD-X40 from Huidu for led moudles p10 control system for led advertising
Specification:
| Mode | Led animation control card HD-U64 HD-X40 |
| Control color | Single color/Double color/RGB |
| Pixels |
512W*256H 3072W*32H (single color); 256W*256H 3072W*16H(Double color); 320W*128H 1536W*16H (RGB) |
| Scan mode | Static, 1/2,1/3,1/4,1/6,1/8,1/16 ect. |
| Communication | USB |
| Voltage | 5V (4.2~5.5V) |
| Power | <0.5W |
| Working temperature | -40~75 degree |
| Size | 56H*85W |
| Flash Capacity | 2MB (Can extend to 8MB) |
| Display color | Double color support Red Green and Yellow. |
| RGB | RGB Color can show Red Green Blue Yellow Purple,Syan and White(7 colors) |
| Program Qty. | 200 programs, support button and remote control |
| Area Qty. | 8 areas,separated areas, separated patterns and separated border |
| Display showing | Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, etc |
| Program mode | Playing by Sequence or by Button |
| Display effects |
1.Support all languages(Software:HD2014) 2. Border functions of Program border, area border and Custom design border. 3.Add Countdown /Count up, Button Countdown / Count up 4.Add Text Rotation of 90°,180°,270° for display Text function of Hollow,Stroke etc 5.Updated program by U-disk 6. More than 40 types showing effects 7.More high brightness, more moving speed ,more refresh 8.Support add Excel directly. |
| Time / Clock /Count Function |
1. Used in Parking place,Scoring device,Calculate by piece. 2. From Minimum to Maximum, from Maximum to Minimum |
| Expand function | temperature,humidity,brightness etc sensor |
| Brightness Control | Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation |
| Automatic close /open display | Support close /open display by time automatically |
| Application | This control card is widely used for all the billboard,shops,vehicle message showing. |
| Advantage | USB communication do not need wire, low cost ,cost-effective. easy software operation,good showing effect and support 98% of all the single and double display screens. |
Pictures:
Dimension pictures:
HD-U64+HUB08:
HD-U64+HUB12:
HD-U64+HUB75:
HUB port introducton:
PIN50 introducton:
| Signal | Pin Number | Introduction |
| A | 42 | lowest number in row address |
| B | 41 | Secondary low number in row address |
| C | 40 | Secondary high number in row address |
| D | 39 | Highest number in row address |
| RCLK | 43 | latch lock in the row |
| CLK | 44 | shift clock |
| OE | 45 | Display available |
| RD |
8,10,12,14,16,18,20,22,24 26,28,30,32,34,36,38 |
Red data |
| GD |
7,9,11,13,15,17,19,21,23 25,27,29,31,33,35,37 |
Green Data |
| VCC | 2,4,47,49 | +5V output |
| GND | 1,3,5,46,48,50 | Earth |
| NC | 6 | leave it alone |
Control System:
led Control System HD2014 is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.
Other Huidu Control card for single/double color:
| Communication | Mode | Pixels (Max) | Pixels(W) | Pixel(H) | Port |
| USB | HD-U6A | 320*32 | 320 | 32 | 2 HUB12 |
| USB | HD-U6B | 1024*48 | 1024 | 48 | 3HUB12 |
| USB | HD-U60 | 512*32 | 1024 | 32 | 1HUB08,2HUB12 |
| USB | HD-U61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| USB | HD-U62 | 512*64 | 1536 | 64 | 2HUB08,4HUB12 |
| USB | HD-U63 | 512*128 | 2048 | 128 | 4HUB08,8HUB1 |
| USB | HD-U64 | 512*256 | 3072 | 256 | 1 PIN50 |
| RS232 | HD-S61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| RS232 | HD-S62 | 1024*64 | 1536 | 64 | 2HUB08,4HUB12 |
| RS232 | HD-S63 | 1024*128 | 2048 | 128 | 4HUB08,8HUB12 |
| RS232 | HD-S64 | 1024*256 | 4096 | 256 | 1 PIN50 |
| RS232 | HD-S65 | 1024*512 | 4096 | 512 | 2 PIN50 |
| Network | HD-E61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| Network | HD-E62 | 1024*64 | 2048 | 64 | 2HUB08,4HUB12 |
| Network | HD-E63 | 1024*128 | 3072 | 128 | 4HUB08,8HUB12 |
| Network | HD-E64 | 1024*256 | 4096 | 256 | 1 PIN50 |
| Network | HD-E65 | 1024*512 | 4096 | 512 | 2 PIN50 |
| Network | HD-E66 | 2048*512 | 8192 | 512 | 2 PIN50 |
| Wifi | HD-W61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| Wifi | HD-W62 | 1024*64 | 2048 | 64 | 2HUB08,4HUB12 |
| Wifi | HD-W63 | 1024*128 | 3072 | 128 | 4HUB08,8HUB12 |
| Wifi | HD-W64 | 1024*256 | 4096 | 256 | 1 PIN50 |
