Product Details:
Payment & Shipping Terms:
|
| Product: | HD-U62 | Communication: | USB |
|---|---|---|---|
| Pixels: | 512*64 (single Color) | Voltage: | DC5V |
| Port: | 2HUB08,4HUB12 | Application: | LED Control Card For P10 |

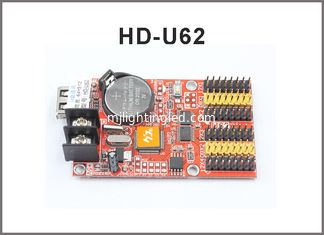

Wholesale led controller card 64*512 pixel HD-U62 HD-Q40 LED control card P10 P16 P20 led billboard rgb led screen board
Specification:
| Mode | HD-A40 HD-U62 LED control card |
| Control color | Single color/Double color/RGB |
| Pixels | 512W*64H 1536W*16H (single color); |
| Scan mode | Static, 1/2,1/3,1/4,1/6,1/8,1/16 ect. |
| Communication | USB |
| Voltage | 5V (4.2~5.5V) |
| Power | <0.5W |
| Working temperature | -40~75 degree |
| Size | 45H*75W |
| Flash Capacity | 2MB (Can extend to 8MB) |
| Display color | Double color support Red Green and Yellow. |
| RGB | RGB Color can show Red Green Blue Yellow Purple,Syan and White(7 colors) |
| Program Qty. | 200 programs, support button and remote control |
| Area Qty. | 8 areas,separated areas, separated patterns and separated border |
| Display showing | Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, etc |
| Program mode | Playing by Sequence or by Button |
| Display effects | 1.Support all languages(Software:HD2014) |
| Time / Clock /Count Function | 1. Used in Parking place,Scoring device,Calculate by piece. |
| Expand function | temperature,humidity,brightness etc sensor |
| Brightness Control | Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation |
| Automatic close /open display | Support close /open display by time automatically |
| Application | This control card is widely used for all the billboard,shops,vehicle message showing. |
| Advantage | USB communication do not need wire, low cost ,cost-effective. easy software operation,good showing effect and support 98% of all the single and double display screens. |
Pictures:
Dimension pictures:
