Product Details:
Payment & Shipping Terms:
|
| Product: | HD-E62 LED Sign Controller | Communication: | RJ45+USB |
|---|---|---|---|
| Pixels: | 1024W*64H (single Color) | Voltage: | DC5V |
| Port: | 2xhub08,4xhub12 | Application: | Controller For Display Screen Moving Sign |
Main products Hot seller
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HD-E62(replace old version HD-E40) Ethernet and USB port LED sign controller for display screen moving sign
Specification:
| Mode | HD-E62 LED sign controller |
| Control color | Single color/Double color/RGB |
| Pixels | 64H*1024W,32H*2048W (single color); 64H*512W,16H*2048W(Double color); 32H*672W,16h*1024W(RGB) |
| Scan mode | Static, 1/2,1/3,1/4,1/5,1/6,1/8,1/16 ect. |
| Communication | Network RJ45 +USB |
| Voltage | 5V (4.2~5.5V) |
| Power | <0.5W |
| Working temperature | -40~75 degree |
| Size | 57H*90W |
| Flash Capacity | 2MB (can extent to 8MB) |
| Display color | Double color support Red Green and Yellow. |
| RGB | RGB Color can show Red Green Blue Yellow Purple,Syan and White(7 colors) |
| Program Qty. | 200 programs, support button and remote control |
| Area Qty. | 8 areas,separated areas, separated patterns and separated border |
| Display showing | Text, Hypertext (GIF,Picture,Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc |
| Program mode | Playing by Sequence or by Remoter or by Button |
| Display effects |
1.Support all languages(Software:HD2016) 2.Support 7 color effects and 64 colors Gray level (HD-E62/E63/E64/E65/E66) 3. Border functions of Program border, area border and Custom design border. 4.Add Countdown /Count up, Button Countdown / Count up 5.Add Text Rotation of 90°,180°,270° for display Text function of Hollow,Stroke etc 6.Add payment collection function 7.Updated program by U-disk 8. More than 200 types showing effects 9.Support Second develop SDK 10.More high brightness, more moving speed ,more refresh |
| Time / Clock /Count Function |
1. Used in Parking place,Scoring device,Calculate by piece. 2. From Minimum to Maximum, from Maximum to Minimum |
| Expand function | Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs |
| Brightness Control | Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation |
| Automatic close /open display | Support close /open display by time automatically |
| Application | This control card is widely used for all the billboard,shops,vehicle message showing, it can be used in local area network(LAN) for group management |
| Advantage | RJ45 network do not need wire, low cost ,cost-effective. easy software operation,good showing effect and support 98% of all the single and double display screens. |

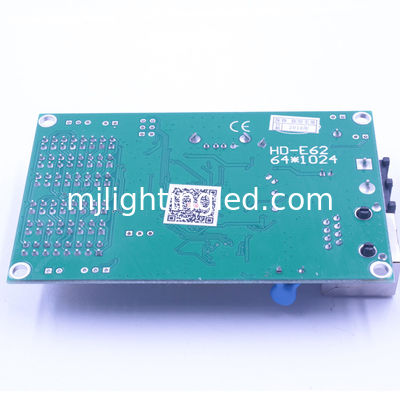

Pictures:
Dimension pictures:
HUB port introducton:
Control System:
led Control System HD2014 is needed for programming. Since it is limited to send CD for foreign delivery, So system will be sent via email.
Other Huidu Control card for single/double color:
| Communication | Mode | Pixels (Max) | Pixels(W) | Pixel(H) | Port |
| USB | HD-U6A | 320*32 | 320 | 32 | 2 HUB12 |
| USB | HD-U6B | 1024*48 | 1024 | 48 | 3HUB12 |
| USB | HD-U60 | 512*32 | 1024 | 32 | 1HUB08,2HUB12 |
| USB | HD-U61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| USB | HD-U62 | 512*64 | 1536 | 64 | 2HUB08,4HUB12 |
| USB | HD-U63 | 512*128 | 2048 | 128 | 4HUB08,8HUB1 |
| USB | HD-U64 | 512*256 | 3072 | 256 | 1 PIN50 |
| RS232 | HD-S61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| RS232 | HD-S62 | 1024*64 | 1536 | 64 | 2HUB08,4HUB12 |
| RS232 | HD-S63 | 1024*128 | 2048 | 128 | 4HUB08,8HUB12 |
| RS232 | HD-S64 | 1024*256 | 4096 | 256 | 1 PIN50 |
| RS232 | HD-S65 | 1024*512 | 4096 | 512 | 2 PIN50 |
| Network | HD-E61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| Network | HD-E62 | 1024*64 | 2048 | 64 | 2HUB08,4HUB12 |
| Network | HD-E63 | 1024*128 | 3072 | 128 | 4HUB08,8HUB12 |
| Network | HD-E64 | 1024*256 | 4096 | 256 | 1 PIN50 |
| Network | HD-E65 | 1024*512 | 4096 | 512 | 2 PIN50 |
| Network | HD-E66 | 2048*512 | 8192 | 512 | 2 PIN50 |
| Wifi | HD-W61 | 1024*32 | 1024 | 32 | 1HUB08,2HUB12 |
| Wifi | HD-W62 | 1024*64 | 2048 | 64 | 2HUB08,4HUB12 |
| Wifi | HD-W63 | 1024*128 | 3072 | 128 | 4HUB08,8HUB12 |
| Wifi | HD-W64 | 1024*256 | 4096 | 256 | 1 PIN50 |
