Product: | TF-E6UR LED Display Control | Com Connector: | RS232+USB |
---|---|---|---|
Animation Support: | Yes | Motor Type: | Display Showing Image |
Multi-language Support: | Yes | Temperature & Humidity: | Yes |
Warranty: | 1 Years |
TF-E6UR LED display control card support 1600 P10 modules seven color plate programmable controller cards
Specification:
Model NO.:TF-E6UR
Pixel:
single color: Max 6400*128/10240*64/3200*256
Dual color: Max 3200*128/5120*64/1600*256
Full color: can support rgb led module with hub08 8 pcs is height, hub75/40 module 4 pcs in height
Communication: RS232 & USB communication
Wireless RF communication support (optional: need RF transceriver and receiver module)
Interface: 50 pin general output interface
Scanning way: 1/16,1/8,1/4,1/2,static
Day timer: 0-9999 days
Timer : HH/MM/SS , Clock frame embeded
JPG,BMP,GIF support
Rich Text format support (RTF)
Temperature & Humidity ,Brightness sensor support,can connect with hub75 adapter
Seperated area display support
Storage capacity:2M byte
Animotional frame show :support various animotional fram effect and pictures custom effect
Display effect:rain,spouting spring,spool etc. (45 types)
Content USB alter support!

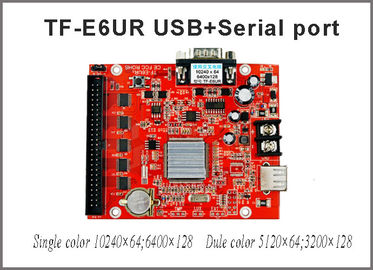

Pictures:
Software:
Software is Powerled, it will come with a CD together with the controllers, If there is problem to ship the CD, Then we will send to
you via email.
