Product: | Led Pixel String | Color: | Yellow |
---|---|---|---|
Voltage: | DC5V | Products Diameter: | 9mm |
Cable Length: | 8cm | Warranty: | 3 Years |
Payment: | T/T,Paypal,Western Union |
Led pixel string light 5V 9mm pixels lights yellow color 0.1W outdoor signs Christmas decoration lightings
Specifications:
Product Name | LED pixel string |
Product Size | 9m diameter |
Hole size | 9mm diameter. |
Voltage | DC 5V |
Power | 0.12W |
Working Currency | 20mA |
Bean Angle | 180° |
Material | PVC |
IP Rate | IP68 |
Working temperature | -45℃~+70℃ |
Warranty | Three Years |
Package | 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton |
Emitting Color | Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor. |
Application | This led pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration. |

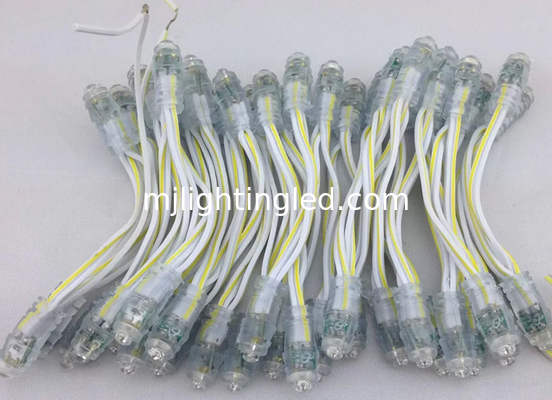

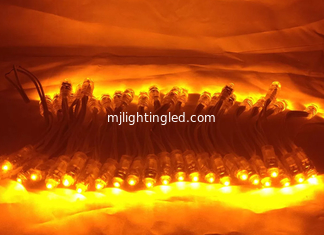

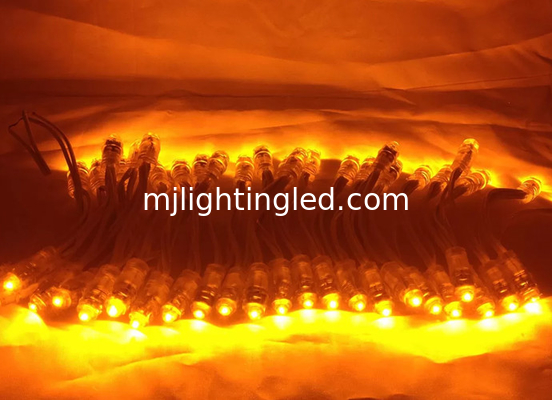

Pictures:
Driver select and installation:
1.Total load power of the driver should not be over than 80% of the driver rated power.
For example: Driver output:DC5V,40A, Rated power is 200W. the load power should not be over
Than 200*80%=160W. If every pcs light is 0.1W, Then the quantity should not be over than
160/0.1=1600pcs.
2.If there is more than one driver, Pls make sure that there is no reture circuit.Otherwise the drivers
Will be burn out.
3.Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .
Pls check the picture as below:
Package:
Application pictures:
Notice:
1.Pls confirm the dirver is DC5V output.
2.The wire connected with driver shouldn’t be less than 2.5 mm2,If the quantity is big,the wire should be more thicker.
3.Pls make sure of the positive and negative of the string, usually the negative is white.
4.Pls hold the middle of the sting with moderate strength and keep it from being damaged.
