Product Details:

Place of Origin: China
Brand Name: MJ
Certification: CE ROHS
Model Number: MJ-9mm-5W

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs/string
Price: LED String Lights
Packaging Details: 50pcs/string
Delivery Time: 3-5days after payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10,000,000pcs/day
Detailed Product Description
Color: White Voltage: DC5V
Power: 0.12W Waterproof: IP68
Products Diameter: 9mm Cable Length: 8cm
Usage: LED String Lights Warranty: 3 Years
Paypal: T/T,Paypal,Western Union


Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement





Specifications:

Product Name 9mm led pixel White signage
Product Size 9m diameter
Hole size 9mm diameter.
Voltage DC 5V
Power 0.12W
Working Currency 20mA
Bean Angle 180°
Material PVC
IP Rate IP68
Working temperature -45℃~+70℃
Warranty Three Years
Package 50pcs/string, 1000pcs/pcakge, 6000pcs/cuton
Emitting Color  Red, Yellow,Blue,Green,White,Voilet, RGB,Fullcolor.
Application This led pixel light is widely used for all kinds of advertising letters,Name board, Wire bar,wall,building and stage decoration.

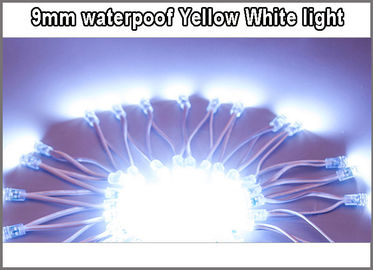

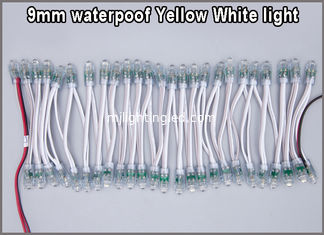

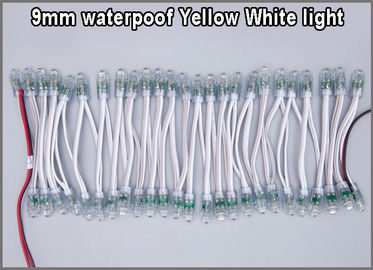

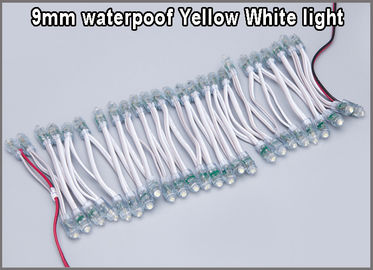

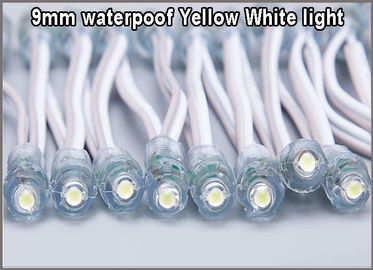

Pictures:

Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement

Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For AdvertisementPixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For AdvertisementPixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For AdvertisementPixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement



Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement



Connect ways: When connect the string with driver, pls keep the beging and the end contacted with the main wire . and main wire must be 2.5 mm2 .

Pls check the picture as below:

Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement



Package:

 Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement



Application pictures:



Pixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For AdvertisementPixel LED Module IP68 Waterproof DC 5V White Addressable LED String Lights Waterproof Point Lights For Advertisement



Common faults and troubleshooting:

1.the whole sting can’t be light up.

 Resolve way:Inspect whether the string and driver main wire polar connected right or not.



2.One pcs light can’t be light up or not bright enough.

Resolve way:The light is break ,and exchange it with the good ones



3.The brightness and color of of the whole sting is not the same ,It caused by the led voltage is not enough.

Resolve way:Exchange the main wire to 2.5mm2 wire.
